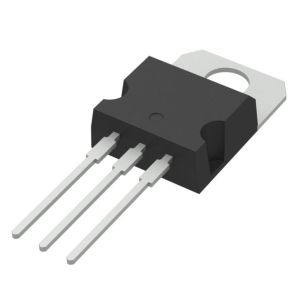

    TIP122 Power Mosfet Transistor Complementary Silicon Power DarliCM GROUPon Transistors

    Ask Lasest Price
    Brand Name :
    Model Number : TIP122
    Certification : new & original
    Price : Negotiate
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 6800pcs
    Delivery Time : 1 day
    • Product Details
    • Company Profile

    TIP122 Power Mosfet Transistor Complementary Silicon Power DarliCM GROUPon Transistors


    TIP120/121/122

    TIP125/126/127

    COMPLEMENTARY SILICON POWER DARLICM GROUPON TRANSISTORS

    ■ STMicroelectronics PREFERRED SALESTYPES


    DESCRIPTION

    The TIP120, TIP121 and TIP122 are silicon Epitaxial-Base NPN power transistors in monolithic DarliCM GROUPon configuration mounted in Jedec TO-220 plastic package. They are intented for use in power linear and switching applications. The complementary PNP types are TIP125, TIP126 and TIP127, respectively.


    ABSOLUTE MAXIMUM RATINGS

    SymbolParameterValueUnit
    NPNTIP120TIP121TIP122
    PNPTIP125TIP126TIP127
    VCBOCollector-Base Voltage (IE = 0)6080100V
    VCEOCollector-Emitter Voltage (IB = 0)6080100V
    VEBOINTERNAL SCHEMATIC DIAGRAM (IC = 0)5V
    ICCollector Current5A
    ICMCollector Peak Current8A
    IBBase Current0.1A
    Ptot

    Total Dissipation at Tcase ≤ 25 ℃

    Tamb ≤ 25 ℃

    65

    2

    W
    TstgStorage Temperature-65 to 150
    TjMax. Operating Junction Temperature150

    TO-220 INTERNAL SCHEMATIC DIAGRAM
