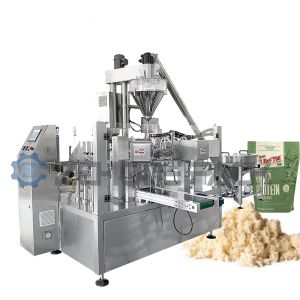

Automatic Weighing, Measuring and Sealing Powder Packaging Machine
Multi-station bag feeding machine Machine Specification:
| Item | ZC-X8200 | ZC-X8250 | ZC-X8300 |
| Packing speed | MAX 60 bags/min,depending on the quality of the packaging
film,packaging materials packaging weight etc. |
| Bag size | (L)100-300mm (W)70-200mm | (L)100-350mm (W)130-250mm | (L)150-450mm (W)200-300mm |
| Bag type | Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed
bag,special-shaped bag |
| Weighing range | 10g-1kg | 10g-2kg | 10g-3kg |
Measurement accuracy | *≤±0.5~1%, depending on the measuring equipment & materials. |
| Maximum bag width | 200mm | 250mm | 300mm |
| Gas consumption | 0.8Mpa 0.3m3/min (Supply by user) |
| Total Powder/Voltage | 2.5KW 380V 50/60Hz | 2.5KW 380V 50/60Hz | 3.7KW 380V 50/60Hz |
| Air compressor | Not less than 1CBM |
| Dimension | L1900*W1400*H1450 | L1900*W1400*H1450 | L2000*W1500*H1550 |
| Machine Weight | 1300kg | 1400kg | 1500kg |
| Work flow | Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→
Auxiliary→Exhaust→Heat sealing→Forming and output products. |
(We can provide you with exclusive customized services according to
your needs!)
The eight-station powder packaging machine is a kind of equipment
for automatic packaging powder, which can handle multiple packaging
tasks at the same time, improving packaging efficiency and
production speed. The equipment usually consists of eight
workstations, and each workstation can independently complete a
series of packaging actions, such as weighing, measuring, filling,
sealing, etc.
The eight-station packaging machine usually adopts advanced control
system and sensor technology, which can realize high-precision
measurement and packaging, which greatly improves the accuracy and
stability of the packaging process. At the same time, the
eight-station powder packaging machine can also be quickly adjusted
and replaced according to different packaging requirements, and is
suitable for powder packaging of different types and
specifications.
The eight-station powder packaging machine usually has the
following advantages:
Efficiency: It can handle multiple packaging tasks at the same
time, improving packaging efficiency and production speed.
High precision: high-precision weighing sensor and advanced control
system can realize high-precision measurement and packaging.
Good stability: Using advanced control system and sensor
technology, automatic control and stable packaging process can be
realized.
Strong flexibility: It can be quickly adjusted and replaced
according to different packaging requirements, and is suitable for
powder packaging of different types and specifications.
In short, the eight-station powder packaging machine is an
efficient, stable and flexible automatic packaging equipment, which
is suitable for production enterprises that need a large amount of
powder packaging.
Features and Performance:
1. Equipped with a variety of automatic diagnosis and automatic
alarm safety protection functions to maximize personal safety and
reduce material loss.
2. It can be equipped with a remote diagnosis system, which can
troubleshoot the machine in the shortest time.
3. It can be equipped with an automatic lubrication system to
prolong the life of the machine and reduce labor costs.
4. It can be equipped with a one-key clip adjustment system to
quickly adjust the machine according to the width of the packaging
bag.
5. The manufacturing process of the whole machine is strict, and
the parts are all made of top international brands.
6. In accordance with international safety and hygiene standards,
each machine has passed many safety, environmental protection,
physical properties and functional tests.
7. Beautiful appearance, simple operation, stable performance and
low failure rate.
