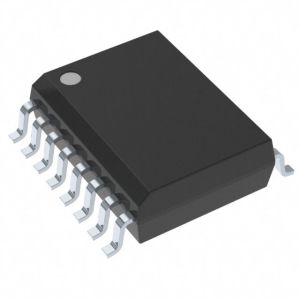

DAC7714U Electronics Components Chip IC Electronics Rectifier Diode

DAC7714U Electronics Components Chip IC Electronics Rectifier Diode
Quad, Serial Input, 12-Bit, Voltage Output DIGITAL-TO-ANALOG CONVERTER

FEATURES
● LOW POWER: 250mW (max)
● UNIPOLAR OR BIPOLAR OPERATION
● SETTLING TIME: 10µs to 0.012%
● 12-BIT LINEARITY AND MONOTONICITY: –40°C to +85°C
● USER SELECTABLE RESET TO MIDSCALE OR ZERO-SCALE
● SECOND-SOURCE for DAC8420
● SMALL SO-16 PACKAGE

APPLICATIONS
● ATE PIN ELECTRONICS
● PROCESS CONTROL
● CLOSED-LOOP SERVO-CONTROL
● MOTOR CONTROL
● DATA ACQUISITION SYSTEMS

„DESCRIPTION
The DAC7714 is a quad, serial input, 12-bit, voltage output Digital-to-Analog Converter (DAC) with guaranteed 12-bit monotonic performance over the –40°C to +85°C temperature range. An asynchronous reset clears all registers to either mid-scale (800H) or zeroscale (000H), selectable via the RESETSEL pin.

The device can be powered from a single +15V supply or from dual +15V and –15V supplies. Low power and small size makes the DAC7714 ideal for process control, data acquisition systems, and closed-loop servo-control.

The device is available in a SO-16 package, and is guaranteed over the –40°C to +85°C temperature range.

ABSOLUTE MAXIMUM RATINGS(1)

TYPICAL PERFORMANCE CURVES:
VSS = 0V At TA = +25°C, VCC = +15V, VSS = 0V, VREFH = +10V, VREFL = 0V, representative unit, unless otherwise specified.
