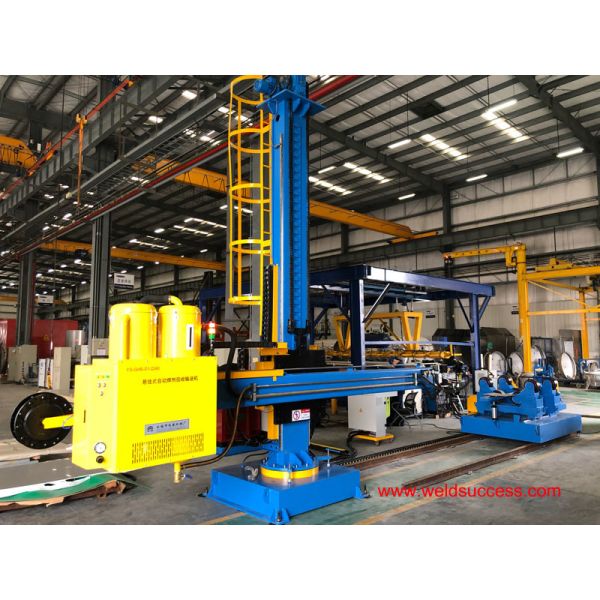

Product Description:
1. We manufactures a complete line of column and boom welding
manipulators which maximize both safety and production with load
capacities ranging from 50kg to 1,000kg.
2. Column and boom welding manipulators are a versatile and rugged
solution to obtain up to 10,000 mm of lift and reach to duplicate
the function of a highly skilled welder.
3. Manual or powered mobile sub-based cars can be included for
varying length tanks.
4. Many variations in speeds, controls, and welding equipment can
be fitted to a column and boom welding manipulator.
5. Both gear elevated and chain drive lifts are available to meet
your needs.
6. Specially-engineered column and boom welding manipulators are
available, please email our positioner sales department to schedule
a consultation.
Features:
1. ISO9000 & CE certification supported
2. Professional and experienced engineer team to ensure the
advanced design of structure and electric
3. Optimum materials and outsourcings to ensure the best
performance
4. Commissioning and testing before delivery
5. You are welcome to visit our factory for inspection at work
shop.
Technical Parameters:
| Model | MD 4040 C&B |
|---|
Boom end load capacity | 250kg |
Vertical boom travel | 4000 mm |
Vertical boom speed | 1000 mm/min |
Horizontal boom travel | 4000 mm |
Horizontal boon speed | 175-1750 mm/min VFD |
Boom end cross slide | Motorized 100*100 mm |
Rotation | ±180°Manual with lock |
Traveling way | Motorized traveling |
Voltage | 380V±10% 50Hz 3Phase |
Control system | Remote control10m cable |
Color | Customized |
Options-1 | Laser pointer |
Options -2 | Camera monitor |
Options-3 | Flux recovery machine |
Applications:
1.To weld the inner seam and outside seam automatically.
2. Auto Flux recovery machine / seam teacker / monitor are all
available.
3. Movable model is available.
Support and Services:
1.We provide 12 months quality warranty after dispatch, and some
easy abrasion spares of equipment for free.
2.We also provide a long term free technical advisory services and
technical consults service.
3. We can also provide installation and training if needed.
4.You also can send your workers to our Factory for inspection and
traning together.
Packing and Shipping:
Welding Manipulators are packaged and shipped according to the
following procedure:
- The equipment is securely packed and inspected for any damage prior
to shipping.
- The packaging is labeled with the contents, destination, and other
relevant information.
- The equipment is then loaded onto a truck for shipping.
- The shipment is tracked and monitored until it reaches the
destination.
FAQ:
Q1: What is the brand name of your welding manipulators?
A1: The brand name of our welding manipulators is Weldsuccess.
Q2: What is the model number of your welding manipulators?
A2: The model number of our welding manipulators is LHC.
Q3: Where are your welding manipulators manufactured?
A3: Our welding manipulators are manufactured in China.
Q4: What certifications do your welding manipulators have?
A4: Our welding manipulators have ISO/CE/CO certification.
Q5: What is the minimum order quantity for your welding
manipulators?
A5: The minimum order quantity for our welding manipulators is 1
set.
