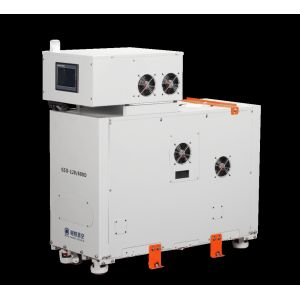

GSD160/1080D 1080 m³/h Dry Screw Vacuum Pump System with GSD160
Backing Pump
constant lead screw, efficient rotor profile design with the high
ultimate pressure
oil-free, clean vacuum, combine with BSJ roots pump for system
Features&Benefits
*Efficient rotor profile design with the high ultimate pressure.
*Oil-free, clean vacuum, combine with roots pump for system.
*Good geometrical symmetry, low noise, long working life.
*remove condensable steam, dust, toxic and other gases, and will
not be trapped in the pump chamber.
*Double-ended bearing support design for reliable rrotor support,
extremely low vibration and superior starting reliablity,
especially for special demanding process.
*Combined with lip-style seal and labyrinth oil-repellent structure
to achieve strong sealing performance and long service life, with
nitrogen purging to prevent gear box from the pollution of process
medium to achieve oil-free vacuum environment.
*High-efficiency permanent magnet synchronous motor with frequency
converter to maximize torque output for harsh processing demand
water-cooled integral sealed motor design to eliminate oil leakage
to improve operational reliability, extend service life and reduce
maitenance costs.
*Intelligent control system design to realize the one-button start
and stop by using intelligent program. The pump chamber can be
automatically cleaned during shut down, and the remote control and
monitoring functions can be realized through the external control
I/O interface and RS485 interface (Modbus protocol).
*Compact-size, few parts, few spares, stable running, light weight,
small size, easy installation.
Technical Data
| Model | GSD160/1080D |
| Pumping speed | m³h-1 | 1080 |
| Ultimate pressure | Pa/ mbar |
0.1/1×10-3
|
| Motor power | kW | 5.5+3.7 |
| Voltage ( 3 Ph ) | V | 380, 400 |
| Inlet | - | VG100 |
| Outlet | - | KF40 |
| Noise | dB (A) | 72 |
| Weight | kg | 495/520 |
| Cooling method | / | Water-cooled |
Performance Curve
Dimensions
Application
