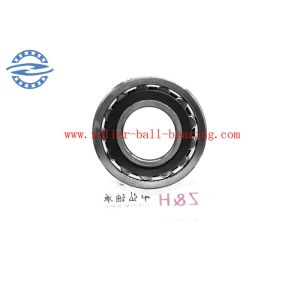

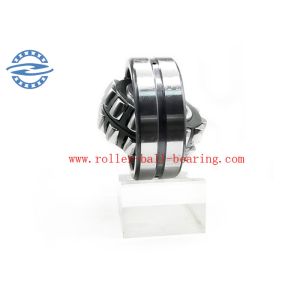

22310CA/W33 double radial spherical plain bearing 50x110x40 mm
Spherical roller bearings have double-row rollers, the outer ring
has a common spherical raceway, and the inner ring has two raceways
that are inclined at an angle relative to the bearing axis. This
ingenious structure makes it have self-aligning performance, so it
is not easy to be affected by the angle of the shaft and the
bearing box seat on the error or shaft bending. It is suitable for
the occasions where the installation error or the shaft deflection
causes the angle error. In addition to being able to withstand
radial loads, the bearing can also withstand bidirectional axial
loads.
Spherical roller bearings have cylindrical and conical bores. The
taper of the conical cone bore is 1:30 and 1:12. This conical bore
bearing is equipped with an adapter sleeve or a withdrawal sleeve.
The tapered inner hole self-aligning ball bearing can be easily and
quickly assembled on the optical shaft or the stepper shaft.

| Name | 22310 bearing 50*110*40mm 22310CA/W33 spherical roller bearing | |||||||
| Model No. | 22310 | |||||||
| Material | Chrome steel GCR15 bearing with brass cage | |||||||
| Packing | ZYSL brand single box | |||||||
| Delivery time | In stock,within 24 hours after receiivng payment | |||||||
| ID (mm) | OD (mm) | B (mm) | Cr (kN) | Cor (kN) | Grease lubrication speed (r/min) | Oil lubrication speed (r/min) | Weight | Brand |
| 50 | 110 | 40 | 228 | 224 | 4800 | 6300 | 1.9kg | ZYSL |
1.Excellent and high quality control,high speed,low noise,long life
2.Prompt delivery
3.Competitive price
4.Small order accepted
5.Customers' drawing or samples accepted
6.OEM service
7.Professional:12 years manufacture bearing
| 22300series | ||
| Bearing Number | Dimension (mm ) | Weight (kg) |
| 22306 | 30X72X19 | 0.37 |
| 22307 | 35X80X31 | 0.75 |
| 22308 | 40X90X33 | 1.03 |
| 22309 | 45X90X33 | 1.4 |
| 22310 | 50X110X40 | 1.85 |
| 22311 | 55X120X43 | 2.42 |
| 22312 | 60X130X46 | 3 |
| 22313 | 65X140X48 | 3.65 |
| 22314 | 70X150X51 | 4.4 |
| 22315 | 75X160X55 | 5.47 |
| 22316 | 80X170X58 | 6.63 |
| 22317 | 85X180X60 | 7.07 |
| 22318 | 90X190X64 | 8.76 |
| 22319 | 95X200X67 | 9.93 |
| 22320 | 100X215X73 | 13.7 |
| 22322 | 110X240X80 | 17.7 |
| 22324 | 120X260X86 | 22.9 |
| 22326 | 130X280X93 | 28.5 |
| 22328 | 140X300X102 | 35.5 |
| 22330 | 150X320X108 | 42 |
| 22332 | 160X340X114 | 52.2 |
| 22334 | 170X360X120 | 60.7 |
| 22336 | 180X380X126 | 72.6 |
| 22338 | 190X400X132 | 84.2 |
| 22340 | 200X420X138 | 94.4 |
| 22344 | 220X460X145 | 119 |
Spherical roller bearings for automotive, construction machinery, oil drilling, coal mining industrial, motion industrial bearing, for rear-wheel, transmission and electric equipment parts for car making; electromotor, home appliances; instrument, combustion engines, building machinery, railway vehicle, loading/unloading machine, farm machinery and various industrial usage.
