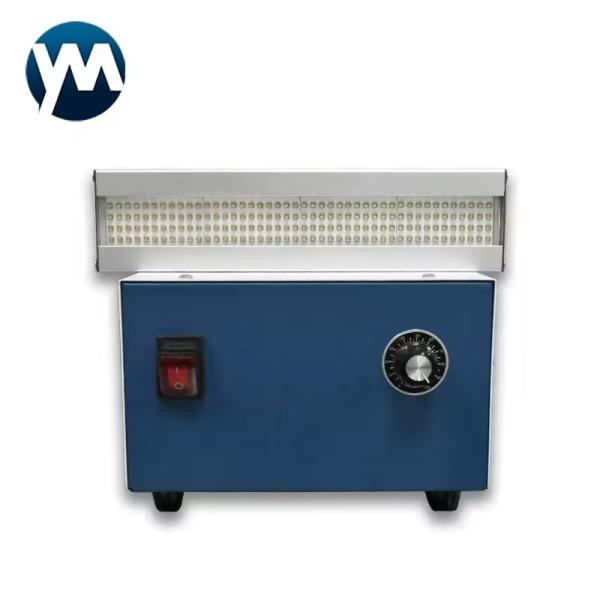

500W UV LED Curing Equipment Air Cooling UV LED Curing System

YM-500W-27067 Feature

1. Features:Fast, flexible curing and drying

2. Cool Printing Environment: Enables to print on heat sensitive substrates, viz. thin slides, self-adhesive sheet,

stretch PVC materials, and more. Minimum heat resistance allows effective bi-directional calibration.

3. Easy Switch OFF and ON: Easily switch ON and OFF without degradation of intensity. Thus, there is no warm up

time which leads faster operation with high productivity.

4. Long life of the Machine: LED has a long life. Thus, they offer long term benefits without lamp down time or any other

consumable cost. Power Saving: Consumes low electricity. Thus, it saves power and offers cost effective solution.

5. Environmental Friendly: Doesn’t consist mercury (a non-disposable element) and ozone gas that can harm the environment.

Product Name	YM-500W-27067 UV LED Module
Power	500W
Color	UV
Number of lamp beads	176 pcs
Diode type	3535 smd
Lens Material of Diode	Quartz
View Angle of the Lens	60, 120 degree
Module size	270mm * 67mm* 63mm
Luminous Size	252mm*25mm
Wavelength	365nm/385nm/395nm/405nm
Brand Name	YM
Chip Material	Epileds/LG/Seoul
Encapsulation process	High temperature quartz lens package
Cooling Mode	Air cooling
Lifespan (hours)	15000
Warranty	1 year
Application	Apply in various UV printing industries, painting,
Place of Origin	Shenzhen, Guangdong, China

About US

Shenzhen Yuanming Technology Co., Ltd. specializes in the production and operation of high-power
UV LED curing light source products, and produces hundreds of high-power UV LED light packaging
products. The product power range is from 0.5W to 10000W. Mainly used for flexographic printing
machines, printing machines, pad printing machines, screen printing machines, offset printing machines,
coating machines, exposure machine, inkjet printing machine, coating, leather, glass, metal, furniture,
car paint detection, fluorescence detection, pet urine detection,PCB and other UVink Photocuring.

Application of UV Led Curing System

Five Star Rating

FAQ

Q1. Can all the products be customized?

A: We are the factory of making UV lamp,UV accessories,UV curing system.All the our products can be made by the details you provide.

Q2:Do you support OEM,ODM service?

A2: Yes! We support OEM / ODM service to customized.

Q3:What is your main products?

A3:UV LED Lamp Bead; UV LED Module; UV LED Single Light.etc.

Q4: Any certificates for your products?

All our products do have CE, ROHS certificates.

Q5: What about the after-sales service?

A5: YM provides spare parts for replacement, and 24 hours online and video technical support.

Q6:How long does it take for my order to be shipped?

A6:It usually takes 3-7 days, depending on the quantity.

If you have other needs, please contact us to provide you with the best solution.

Umi@ymleduv.com , Thank you for your attention.

Shenzhen Yuanming Technology Co., Ltd. Specializes in the production and operation of high-power UV LEDs, Ultra violet curing light source products. The production of high-power UV LED ultra violet encapsulated products have hundreds of category. The power of products range from 0.5W to 10000W. The UV LED ultraviolet encapsulated products manufactured by Shenzhen Yuanming Science and Technology Co., Ltd. have various applications, including printing presses, 3D printing, transfer Printers, Screen Printers, Offset Printers, Coating Machines, Exposure Machines, UV LED Linght Sources, Spray Painting, Coating, Leather curing, Glass, Metal, Furniture, PCB Ink light-curing, as well as in agrciultural planting, fishery, crime investigation, medical, biological, cosmetic and water treatment. Food and other kinds of disinfection and sterilization.

Since it’s establishment, relying on strong technical resources, specialized management and perfect supply and marketing channels, adhering to the business philosophy of "pursuing mutual development with customers" and the service tenet of "quality wins customers, honesty wins markets", the company has provided high-quality and efficient UV LED ultraviolet products, application service solution and technical support for customers, thus becoming trusted partners of customers with real value and trust.

Shenzhen yuanming co., ltd. sincerely looks forward to your joining in the trading of high-power UV LED ultraviolet light products. Welcome to our company to negotiate business and looking forward to mutual growth and devlopment！
