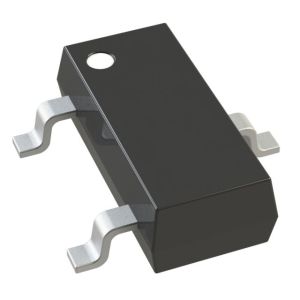

PESD5V0S2BT Sot-23 Electronics Components Program ic Chip Memory IC

PESD5V0S2BT Sot-23 Electronics Components Program ic Chip Memory IC

PESD5V0S2BT

Low capacitance bi-directional double ESD protection diode in SOT23 package

1.1 General description

Low capacitance bi-directional double ESD protection diode in the small SOT23 plastic package designed to protect 2 data lines from the damage caused by Electro Static Discharge (ESD) and other transients.

1.2 Features

■ Bi-directional ESD protection of 2 lines

■ Low diode capacitance

■ Max. peak pulse power: Ppp = 130 W at tp = 8/20 µs

■ Low clamping voltage: VCL(R) = 14 V at Ipp = 12 A

■ Ultra low leakage current: IRM = 5 nA at VRWM = 5 V

■ ESD protection > 30 kV

■ IEC 61000-4-2; level 4 (ESD)

■ IEC-61000-4-5 (surge); Ipp = 12 A at tp = 8/20 µs.

1.3 Applications

■ Cellular handsets and accessories

■ Portable electronics

■ Computers and peripherals

■ Communication systems

■ Audio and video equipment.

PART OF STOCK

CHONGMING GROUP (HK) INT'L CO., LTD. located in Hong Kong and Shenzhen. We are an independent Distributor of Electronic Components,established in 2008. AS a growing fast company, CM GROUP is renowned for its world-class efficiency, excellent services, and extraordinary ability to supply electronic components that are hard to find and even obsolete. We have taken pride in our innovation, reliability and service, especially in the semiconductor marketplace.
Our distribution brands include XILINX，ALTERA，ATMEL, INFINEON, ST,SAMSUNG，TEXAS INSTRUMENTS，ON，TOSHIBA，，MICROCHIP，CYPRESS，FREESCALE，etc. We distributes over 200,000 products ranging from semiconductors to resistors, capacitors, diodes, inductors, connectors, transistors, sensors and so on.
Our mission is to meet and exceed all the expecations of what we supply to customers.
