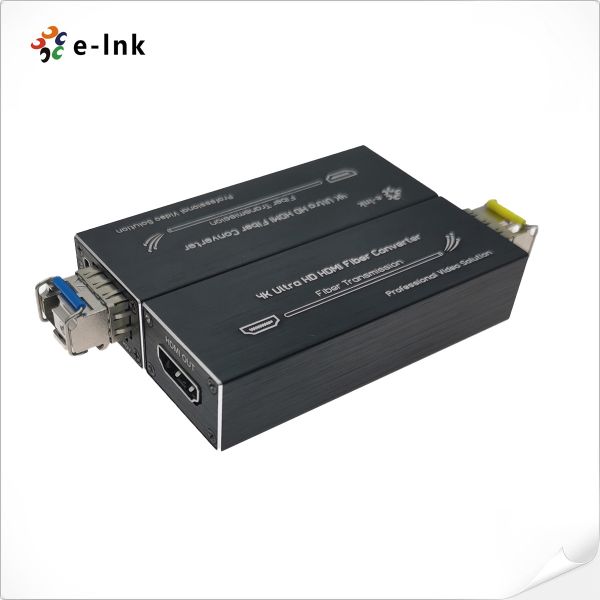

4K HDMI Fiber Extender Single Mode Single Fiber Transmitter &
Receiver LC 20KM
HDMI Fiber Converter Advantage
► Supports HDMI 1.4a and HCCP1.2
► No compression transmission, no delay, no loss
► Support for DDC CEC HPD signals
► Fiber optic transmission distance up to 80 kilometers
► Supports up to 4K resolution for all modes* 2K@30Hz
► 5VDC USB-C power input
► Supports hot swapping and anti electromagnetic interference
4K HDMI Fiber Optic Extender Overview

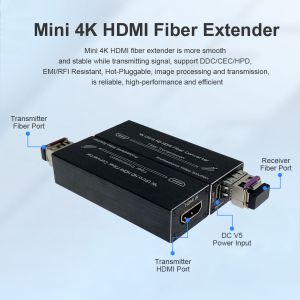

The LNK-MH4K series mini 4K HDMI optical transceiver is a mini HDMI
optical transceiver that delivers uncompressed HDMI high-definition
signals, supports 1.4A, has no loss, supports resolutions up to 4K
* 2K, and supports 3D. The transmitting end of the 4K HDMI optical
transceiver converts HDMI high-definition images and data into 10G
fiber optic signals, while the receiving end of the 4K HDMI optical
transceiver converts the received fiber optic signals into HDMI
high-definition images and data. At the same time, it also
transmits the DHCP and EDID information obtained from HDMI back to
the optical transceiver T, supporting HDCP and EDID transmission.
It not only breaks the limit on the transmission length of HDMI
wires, but also makes it more convenient and flexible, saving costs
for customers. Mini 4K HDMI optical transceiver complies with
European RoHS lead-free standard requirements.
4K HDMI Fiber Transmitter Receiver Technical Indexes
Type of Extender | Fiber Transmitter for HDMI signal over Optical Fiber Cable |
Connector | Female HDMI type A |
Signal Support | HDMI 1.4a HDMI format standard and HDCP compliant |
Video Support | 1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz |
Audio Support | Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD,
DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
Chroma Subsampling | Color space 420, 400 |
Fiber Connector | SFP/LC |
Bandwidth | 10.3Gbps |
Transmission Distance | 300m (Over OM3 Fiber) |
Up to 80km (Over Single-mode Fiber) |
Operating Temperature | -10 to + 60°C |
Storage Temperature | -20 to + 85°C |
Humidity | 5% to 90% RH (non-condensing) |
MTBF | 100,000 hours |
Dimension (WxDxH) | 3.07 x 1.06 x 0.69in (78x27x17mm) |
Weight | 50g / 0.11 lb |
Power Supply | 5V DC (USB-C) |
Power dissipation | <5W |
Safety Approvals | CE, FCC, RoHS |
HDMI Fiber Transmitter Receiver Ordering Information
Model | Description |
LNK-MH4K-MM | Micro Mini HDMI Fiber Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K),
OM3 Multi-mode Dual Fiber, 300 meters, LC, including 1 transmitter
& 1 receiver, USB Power Input |
LNK-MH4K-S20 | Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K),
Single-mode Single Fiber, 20km, LC, including 1 transmitter & 1
receiver, USB Power Input |
LNK-MH4K-S40 | Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K),
Single-mode Single Fiber, 40km, LC, including 1 transmitter & 1
receiver, USB Power Input |
LNK-MH4K-80 | Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K),
Single-mode Dual Fiber, 80km, LC, including 1 transmitter & 1
receiver, USB Power Input |
LNK-MH4K-S80 | Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K),
Single-mode Single Fiber, 80km, LC, including 1 transmitter & 1
receiver, USB Power Input |
