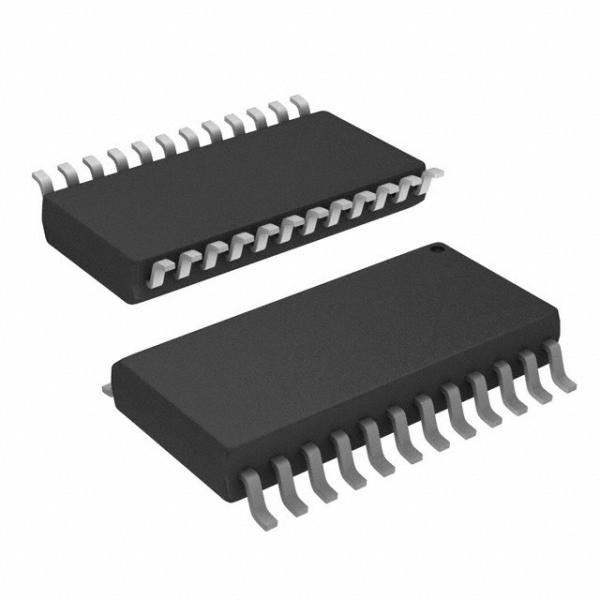

CD74HC4067, CD74HCT4067
High-Speed CMOS Logic 16-Channel Analog Multiplexer/Demultiplexer
The CD74HC4067 and CD74HCT4067 devices are digitally controlled
analog switches that utilize silicon-gate CMOS technology to
achieve operating speeds similar to LSTTL, with the low power
consumption of standard CMOS integrated circuits. These analog
multiplexers/demultiplexers control analog voltages that may vary
across the voltage supply range. They are bidirectional switches
thus allowing any analog input to be used as an output and
vice-versa. The switches have low “on” resistance and low “off”
leakages. In addition, these devices have an enable control which
when high will disable all switches to their “off” state
Features
• Wide Analog Input Voltage Range
• Low “ON” Resistance - VCC = 4.5V. . . . . . . . . . . . . . .. .
. 70Ω(Typ)
- VCC = 6V . . . . . . . . . . . . . . . . . . 60Ω(Typ)
• Fast Switching and Propagation Speeds
• “Break-Before-Make” Switching. . . . . 6ns (Typ) at 4.5V
• Available in Both Narrow and Wide-Body Plastic Packages
• Fanout (Over Temperature Range)
- Standard Outputs . . . . . . . . . . . . . . . 10 LSTTL Loads
- Bus Driver Outputs . . . . . . . . . . . . . 15 LSTTL Loads
• Wide Operating Temperature Range . . . -55oC to 125oC
• Balanced Propagation Delay and Transition Times
• Significant Power Reduction Compared to LSTTL Logic ICs
• HC Types
- 2V to 6V Operation
- High Noise Immunity: NIL = 30%, NIH = 30% of VCC at VCC = 5V
• HCT Types - 4.5V to 5.5V Operation
- Direct LSTTL Input Logic Compatibility, VIL= 0.8V (Max), VIH = 2V
(Min)
- CMOS Input Compatibility, Il ≤ 1µA at VOL, VOH
| ABSOLUTE MAXIMUM RATINGS(1) |
Temperature Range, TA . . . . . . . . . . . . . . . . . . . . . .
-55°C to 125°C Supply Voltage Range, VCC HC Types . . . . . . . . . .2V to 6V HCT Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . .4.5V to 5.5V DC Input or Output Voltage, VI , VO . . . . . . . . . . . . . . . .
. 0V to VCC Input Rise and Fall Time 2V . . . . . . . . . .. . . . 1000ns (Max) 4.5V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . 500ns (Max) 6V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . 400ns (Max) Thermal Resistance (Typical) θJA (oC/W) E (PDIP) Package, Note 1 . . . . . . . . . . . . . . . . . . . . 67 M (SOIC) Package, Note 2 . . . . . . . . . . . . . . . . . . . 46 SM (SSOP) Package, Note 2. . . . . . . . . . . . . . . . . . 63 Maximum Junction Temperature (Plastic Package) . . . . . . . .
150°C Maximum Storage Temperature Range . . . . . . . . . .-65oC to 150°C |
