HE01A-02W180M LED Emergency Converter Auto Testing Self Diagnostic Operation

    Buy cheap HE01A-02W180M LED Emergency Converter Auto Testing Self Diagnostic Operation from wholesalers

    Buy cheap HE01A-02W180M LED Emergency Converter Auto Testing Self Diagnostic Operation from wholesalers
    • Buy cheap HE01A-02W180M LED Emergency Converter Auto Testing Self Diagnostic Operation from wholesalers

    HE01A-02W180M LED Emergency Converter Auto Testing Self Diagnostic Operation

    Ask Lasest Price
    Brand Name : HAISEN
    Model Number : HE01A-02W180M
    Certification : CE UKCA
    Price : Negotiable
    Payment Terms : D/A, D/P, T/T
    Supply Ability : 1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days
    Delivery Time : Standard Models Within 3 Weeks
    • Product Details
    • Company Profile

    HE01A-02W180M LED Emergency Converter Auto Testing Self Diagnostic Operation

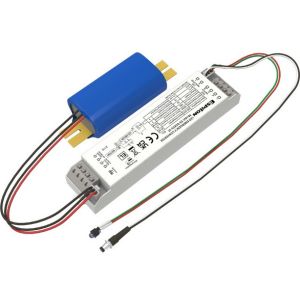

    LED Emergency converter HE01A-02W180M Auto Testing - Self Diagnostic Operation


    *HE01A-02W180M Specification pdf. *




    Features:

    • Constant output power
    • Used with lithium battery
    • Suits for LED fitting with external LED driver
    • Accessary test switch and LED indicator
    • Auto Testing - Self Diagnostic Operation
    • With multi-protection function:
    battery overcharge protection;
    battery over-discharge protection;
    output overload protection;
    short-circuit protection


    Technical Data:
    Input voltage
    220-240 Vac 50/60Hz
    Input Current
    0.06A (Max) 230V AC
    Power Factor
    ≥0.5
    Battery charging current
    200mA(Max)
    Battery charging time
    24h(Max)
    Working temperature
    0-60℃
    Maximum shell temperature
    75℃
    Storage temperature
    -20-60℃
    Electric strength
    3000Vac 5mA (input to output)
    IP Rating
    IP20


    Mechanical Structure:
