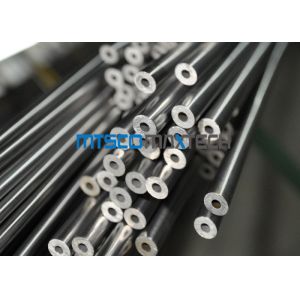

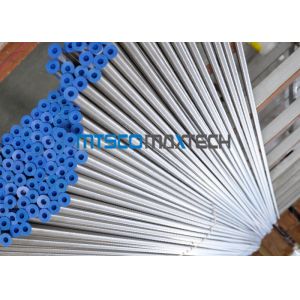

ASTM B619 / B622 Alloy C276 / N10276 Nickel Alloy Pipe For
Condenser
1. Material Grade: UNS N10276, UNS N10001, UNS N10665, UNS N10675,
UNS N06022, N08800, N08825, N04400; etc
2. Outer Diameter: 6mm-355.6mm
Wall Thickness: 0.75mm-20mm
3. Length: Normally fixed length 6m, can as per customer’s
requirement
4. Standard: ASTM B169; ASTM B167; ASTM B444; ASTM B622 etc
Alloy C276 / N10276 Chemical composition:
| % | Ni | Cr | Mo | Fe | W | Co | C | Mn | Si | P | S | V |
| min | balance | 20.0 | 12.5 | 2.0 | 2.5 | - | - | - | - | - | - | - |
| max | 22.5 | 14.5 | 6.0 | 3.5 | 2.5 | 0.015 | 0.50 | 0.08 | 0.020 | 0.020 | 0.35 |
UNS N10276 Corrosion resistance
C276 alloy suit for many kinds of chemical process industry which
contain the oxidizing medium and reductant. High molybdenum and
chromium content make it can resist the chloride corrosion, and
tungsten make it corrosion resistance better.C276 is one of a few
material that can resist the corrosion of most chlorine,
hypochlorite and chlorine dioxide, this alloy have prominent
corrosion resistance to high concentration chlorate( iron chloride
and copper chloride).
Test :
1 . NTD(Ultrasonic test, Eddy Current test)
2 . Mechanical Test(Tension Test, Flaring Test, Flattening Test,
Hardness Test, Hydraulic test)
3 . Metal Test(Metallographic Analysis, Impact Test-High/low
temperature)
4 . Chemical Analysis(Photoelectric Emission Spectroscopic)
Terms & Conditions
| Price Item | FOB, CFR, CIF or as negotiation |
| Payment | T/T, LC or as negotiation |
| Delivery Time | 30 working days after received your deposit (Normally according to
the order quantity) |
| Package | Iron case; woven bag or as per customer’s requirement |
| Quality Requirement | Mill Test Certificate will be supplied with shipment, Third Part
Inspection is acceptable |
Quality
| Test
| NTD(Ultrasonic test, Eddy Current test) |
| Mechanical Test(Tension Test, Flaring Test, Flattening Test,
Hardness Test, Hydraulic test) |
| Metal Test(Metallographic Analysis, Impact Test-High/low
temperature) |
| Chemical Analysis(Photoelectric Emission Spectroscopic) |
| Market | Main Market | Europe, Middle East, Southeast Asia, South America. etc |
About MTSCO:
Who MTSCO is?
MTSCO established in 2006, during many years’ development, now becomes a large and
professional industrial piping system provider, serving customers
from more than 100 countries and regions.
What products can MTSCO provide?
What materials can MTSCO provide?
Austenitic: 304/L/H/N,316/L/H/N/Ti,321/H,309/H,310S,347/H,317/L904L
Duplex steel: 31803,32205,32750,32760
Nickel Alloy:
UNS N10001, N10665, N10675, N06455, N06022, N10276, N06200, N06035, N06030, N06635, N10003, N06002, R30188, N06230,
R30556
UNS N06600, N06601, N06617, N06625, N07718, N07750, N08800, N08810,
N08811, N08825, N09925, N08926
UNS N04400, N05500
Precipitation-hardening Steels: 254SMO/S31254, 17-4PH, 17-7PH,
15-7PH
Nickel: N4/UNS N02201, N6/UNS N02200
How can MTSCO service customers?
MTSCO's ISO9001 Quality System is issued by TUV. Our full and
professional inspection reports contain two parts, one is
self-inspection of the requirements beyond ISO9001, which is 100%
inspected by our own QC; another is 100% inspected by professional
QC teams.
For more information, you are welcome to contact us by email. Thank
you for your interest.
