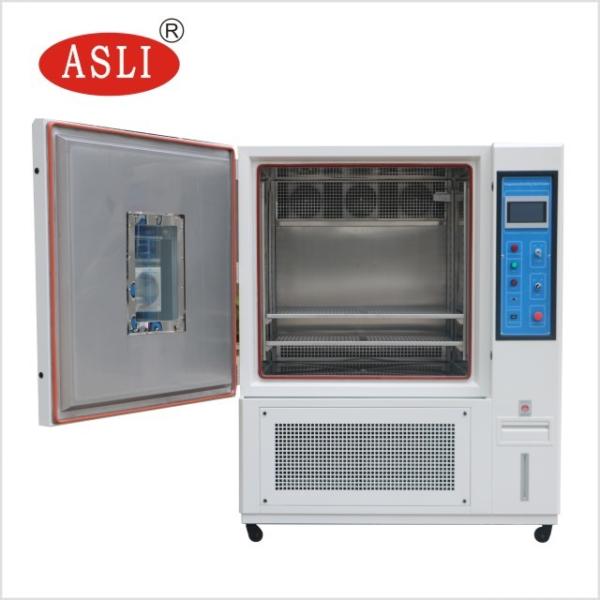

CE Certified Rapid Temperature And Humidity Change Test Chamber
Electrical Thermal Testing Climatic Test Equipment
Application :
CE Certified Rapid Temperature And Humidity Change Test Chamber
Electrical Thermal Testing Climatic Test Equipment that able to
offer quick and constant conditions from 5% to 98% R.H. +/- 0.5%
and-70°C to 150°C +/-0.5°C, is widely used for the resistance test
to heat, cold, dry, and humidity etc, and used for the conditioning
of many kinds of samples prior to testing.
It is designed for testing the capability of heat-endurance,
cold-endurance, dryness-endurance, and humidity-endurance, suitable
for quality control of the industries of electron, electrical
equipment, vehicle, metal, foodstuffs, chemistry, building
materials, luggage, adhesion tape, printing, packaging, etc.
Temperature Humidity Machine Technical Parameter:
| Model | TH-1000 (A~F) |
| Internal Dimension | 1000x1000x1000 ( WxHxD mm) |
| External Dimension | 1750x1900x1750 (WxHxD mm) |
| Temperature Range | Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) High Temperature 150°C |
| Humidity Range | 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optional , need
Dehumidifier) |
| Indication relolution/ Distribution uniformity of temperature and
humidity | 0.1°C; 0.1% R.H/±2.0°C; ±3.0% R.H. |
| Control Accuracy of Temperature and Humidity | ±0.5°C; ±2.5% R.H. |
| Temperature Rising/ Falling Velocity | Temperature rising approx. 0.1~3.0°C/min ; temperature falling approx. 0.3~1.0°C/min; ( Falling Min.1.5°C/min is optional) |
| Inner and Outer Material | Interior material is SUS 304# stainless steel, exterior is
stainless steel or SEE cold-rolled steel with paint coated. |
| Insulation Material | Resistant to high temperature, high density, formate chlorine,
ethyl acetum foam insulation materials |
| Cooling System | Wind cooling or water cooling, (single segment compressor-40°C,
double segment compressor -70°C) |
| Protection Devices | Fuse-free switch, overloading protection switch for compressor,
high and low voltage coolant protection switch, over-humidity and
over-temperature protection switch, fuses, fault warning system,
water short storage warning protection |
Pictures for reference:
Heated humidification system:
1.Adopt U-TYPE SUS#304ss Electric heat pipe heater
2.Humidify barrel made of SUS#304ss,with observation glass and
electromagnetic valve of water level
3.Idepently heat,wet humidify,dehumidify system.
4.With auto heating,wetting and demist function,with observation
glass and imported tube.
5.Humidification water recycling, automatic filling water
system,25L built in draw-out type water tank
