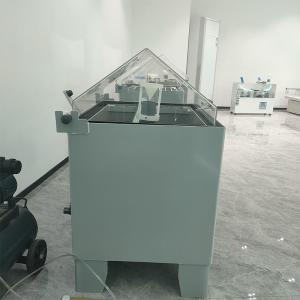

Laboratory Electronic Salt Spray Corrosion Test Chamber
Environmental Test Labs 108L
Specification
| Internal Dimension W*H*D(mm) | 1200*1000*500mm |
| External Dimension W*H*D(mm) | 2050*1250*1400mm |
| Lab Capacity(L) | 108 |
| Saline Capacity(L) | 15 |
| Enter./Inter.Material | P.V.C&P.P |
| Compressed Air Pressure(kgf) | 1.0-6.0 |
| Single gross weight | 65KG |
| Power Source | 220V 60/50HZ |
Structure:
1. The Salt Spray and Salt Fog Corrosion Test Chamber cover is made
of transparent materials so that the operator can see the tested
sample in the chamber and the spraying situation of the tested
sample.
2. A waterproof structure is adopted between the chamber cover and
chamber body and thus there is no salt spray overflow.
3. Adopts the tower spraying system and equipped with the salt
solution filter system and non-crystal nozzle so as to realize even
salt spray distribution and freely adjustable settlement.
Features
1. Durable hard 8 mm PVC construction, corrosion resistant and easy
to clean.
2. Water tank with mixing system on stand.
3. Heating system separate from the test salt chamber to ensure
accurate results and protect the circuitry.
4. Exposed area lined with corrosion resistant PVC sheet.
5. Transparent lid allows visibility of the test.
6. Raised lid prevents condensation from dripping onto the sample.
7. Water seal and water level protection system.

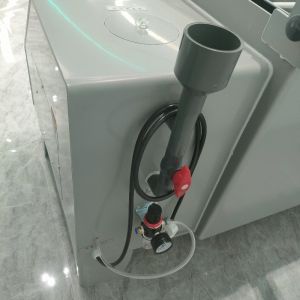

8. Heated humidification tower with air relief valve with
adjustable tip to determine the direction of salt spray.
9. Automatic filling of the humidification tower with DI water.
10. Digital temperature control.
11. Integral over-protection device on the heater.
12. Low water cut-off protection on humidification tower.
Details Images
FAQ:
1. who are we?
We are based in Guangdong, China, start from 2018,sell to Southeast
Asia(11.00%),Eastern Asia(10.00%),Southern Europe(10.00%),Domestic
Market(10.00%),Northern Europe(9.00%),South Asia(9.00%),North
America(7.00%),South America(7.00%),Western Europe(7.00%),Eastern
Europe(6.00%),Mid East(6.00%),Oceania(5.00%),Central
America(3.00%),Africa(0.00%). There are total about 11-50 people in
our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Testing Equipment,Tensile Testing Machine,Environmental Test
Chamber,Fire Testing Equipment,Induction Heating Machine
4. why should you buy from us not from other suppliers?
We are a high-tech enterprise which is specialized in developing
and manufacturing Fire Testing Equipment, Building Material Fire
Tester, Wire and Cable Fire Tester, Environmental Test Chamber,
Textile Testing Equipment, Toys Testing Equipment and etc.
5. what services can we provide?
Accepted Delivery Terms:
FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express
Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western
Union,Cash,Escrow;
Language Spoken:English,Chinese
