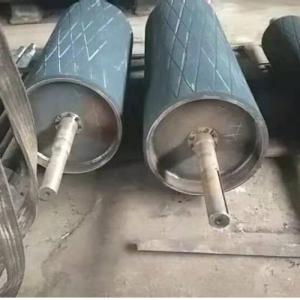

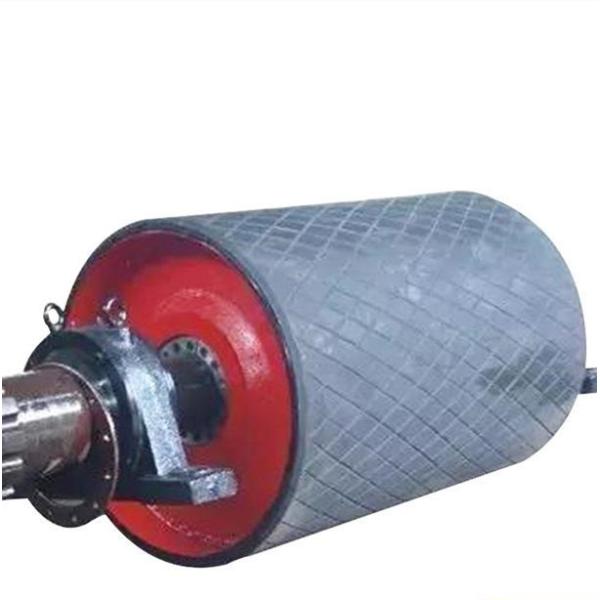

TD75 Conveyor Drive Pulley

TD75 Conveyor Drive Pulley

Conveyor Drive Roller Drum Pulley With High Quality For Bulk Material Handing Solution

Driving pulley is the main part for transmiting the power,as per the diferent carying capacities,the drivingpulley can be divided into three categones:Light duty,meium duty and heavy duty,and for the same diameter ofthe puley,there are many different axle diameters and central spans.The surface teatrment of the drving puley can be smooth steel,hering bone or rhombic rubber lagging,thesmooth steel pulley is available for the place which environment is small power,smal belt width and dry,theherring bone rubber lagging has a big friction facto,beter anti-slippery and drainage ability,but it has its owndirection,the rhombic rubber lagging is available for twoway operating conveyors,the vuicanized rubber laggedpulley are mesty used for important applicatons.

The turning pulley is used for changing the direction of the belt running or increasing the wrap angle between theconveyor belt and the driving pulley As per different carrying capacities,the bend pulley can be divided into three calegories:light duty,medium duty and heaw cluty.The pulley which is used for extending the contact surface,is usualy used for belowor equal to 45 degree bending.The sutace treatment of the bend puley can be smooth stel and fat rubber lagging.

Why Use Pulley Lagging?

Pulley lagging is a layer of material bonded to the surface of a conveyor pulley. The pulley lagging is used to protect the conveyor pulley surface from damaging, increase the friction with the conveyor belt, extend the service life of the conveyor belt and conveyor pulley.

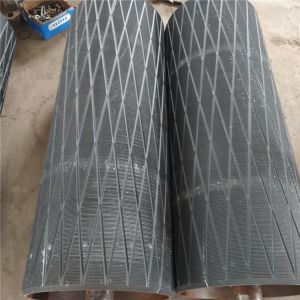

There are several different types of pulley lagging, such as plain rubber pulley lagging sheet, diamond pulley lagging sheet and ceramic pulley lagging sheet. Each type of pulley lagging sheet has different variations, specifications and are used for a variety of purposes.

Product Details:

Belt Width: 500mm to 2200mm
Pulley Diameter: 250-1800mm
Pulley Tube: Q235 Carbon Steel
Shaft: Q235 or C45.
Bearing Brand: SKF, FAG, NSK, Lyc etc.
Finish: Painting or lagging( diamond, chevron,ceramic lagging)
Package: Free Fumigation Wooden Packing Cases.

conveyor pulley Description

Product name	conveyor drum pulley
Place of Origin	hebei, China (Mainland)
Standard	CEMA / JIS / DIN / ISO
Certification	ISO9001/BV/SGS
Material	steel, SS
Bearing Model	UCP,UCT or others
Bearing Brand	HRB, LYC, ZWZ,SKF, NSK,C&U
Working Life	≥30000 hours
Diameter	D500mm to D2000mm
Belt Width	B500mm to B3000mm
Application	coal, metallurgy, machinery, ports, electrical, chemical, foundry, building materials, food and other fields.
Special	can be customized according to customer or design for customer
Supply Ability	50pcs per day
Guarantee	12 months
Contract manufacture	OEM services offered, design services offered
Business type	Factory, welcome to visit

Drum Pulleys
30''-63'' FACE WIDTH
DIA.	XT HUB	QD HUB	MAX.BORE	FACE WIDTH (INCHES)
10''	XT25	SF	2 1/2	30,32,36,38,40,42,44,46,51
	XT30	E	3
	XT35	F	3 1/2
12''	XT25	SF	2 1/2	30,32,36,38,40,42,44,46,51
	XT30	E	3
	XT35	F	3 1/2
14''	XT25	SF	2 1/2	30,32,36,38,40,42,44,46,51
	XT30	E	3	30,32,36,38,40,42,44,46,51
	XT35	F	3 1/2	30,32,36,38,40,42,44,46,51,54,57,60,63
	XT40	JS	4	30,32,36,38,40,42,44,46,51,54,57,60,63
16''	XT25	SF	2 1/2	30,32,36
	XT30	E	3	30,32,36,38,40,42,44,46,51,54,57,60,63
	XT35	F	3 1/2
	XT40	JS	4
	XT45	MS	4 1/2	38,40,42,44,46,51,54,57,60,63
18''	XT25	SF	2 1/2	30,32
	XT30	E	3	30,32,36,38,40,42,44,46,51,54,57,60,63
	XT35	F	3 1/2
	XT40	JS	4
	XT45	MS	4 1/2
	XT50	NS	5	38,40,42,44,46,51,54,57,60,63
20''	XT25	SF	2 1/2	30,32,36
	XT30	E	3	30,32,36,38,40,42,44,46,51,54,57,60,63
	XT35	F	3 1/2
	XT40	JS	4
	XT45	MS	4 1/2
	XT50	NS	5	32,36,38,40,42,44,46,51,54,57,60,63
24''	XT30	E	3	30,32
	XT35	F	3 1/2	30,32,36,38,40,42,44,46,51,54,57,60,63
	XT40	JS	4
	XT45	MS	4 1/2
	XT50	NS	5
	XT60	PS	6	36,38,40,42,44,46,51,54,57,60,63
30''	XT30	E	3	30,32,36
	XT35	F	3 1/2	30,32,36,38,40,42,44,46,51,54,57,60,63
	XT40	JS	4
	XT45	MS	4 1/2
	XT50	NS	5
	XT60	PS	6
	XT70	WS	7	44,46,51,54,57,60,63
	XT80	WS	8	60,63
36''	XT35	F	3 1/2	30,32,36
	XT40	JS	4	30,32,36,38,40,42,44,46,51,54,57,60,63
	XT45	MS	4 1/2
	XT50	NS	5
	XT60	PS	6
	XT70	WS	7	36,38,40,42,44,46,51,54,57,60,63
	XT80	WS	8	54,57,60,63

Drive/Head Pulley – A conveyor pulley used for the purpose of driving a conveyor belt. Typically mounted in external bearings anddriven by an external drive source.
Return/Tail Pulley – A conveyor pulley used for the purpose of redirecting a conveyor belt back to the drive pulley.
Tail pulleys can utilize internal bearings or can be mounted in external bearings and are typically located at the end of the conveyor bed.
Snub Pulley – A conveyor pulley used to increase belt wrap around a drive pulley, typically for the purpose of improving traction.
Take - Up Pulley– A conveyor pulley used to remove slack and provide tension to a conveyor belt. Take-Up pulleys are more common to conveyors of longer lengths.
Bend Pulley – A conveyor pulley used to redirect the belt and provide belt tension where bends occur in the conveyor system.

Type conveyor DTII, TD75
Bearing NO: 6204/6205//6306/6307/6308 etc
Material: carbon steel, Rubber , nylon etc.
Belt width: from 300mm to 2400mm
