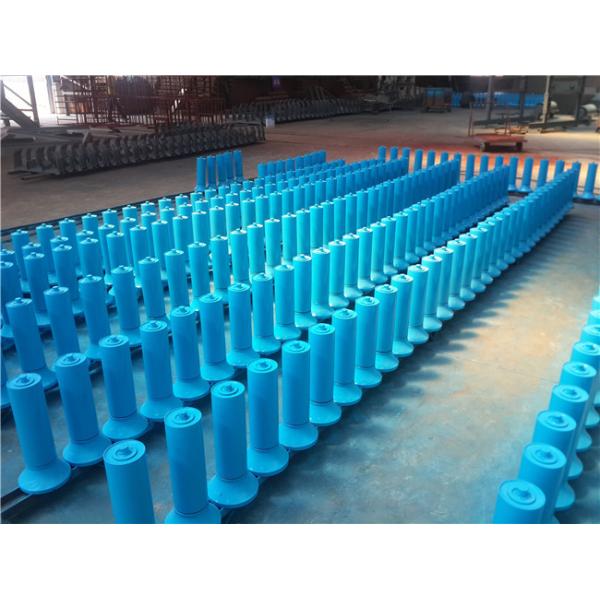

High Precision Heavy Duty Belt Conveyor Steel Carrying Roller

Conveyor Steel Roller Advantage

a) Easy installation and nice flexibility.

b) Strong construction and perfect dynamic balance.

c) Reduce vibration and 20% lifetime extension of belt.

c) Extremely low roundness and low friction coefficient.

e) Heavy-duty carrying capacity and definitely water/dust proof.

f) Powder coating makes the roller high wear resistance and good-looking.

g) Strict inspection standard ensures our high quality product.

RAW MATERIAL OF ROLLERS:
1. Pipe:
High precision longitudinal seam-welded steel pipe, materials S235JR(EN 10025-2),St37-2 (DIN 17100)
Remove internal and external welding bars and uniform wall thickness ensure the roller good dynamic balance
Good out of roundness of pipe ensure the roller have small T.I.R
The pipe is cut and machined using automatic CNC machines, that guarantee the tolerances precision
Roller surface treatment is electrostatic powder coating, thickness of coating approx. 80-120 μ.

2. Shaft:
Cold-drawn round steel bar, materials S235JR(EN 10025-2),St37-2 (DIN 17100)
High precision diameter tolerance, seat IT6 acc. to EN ISO 286-1, perfect match with bearings.
Cut and machined by automatic numerically controlled machines
Precise positioning of circlip groove ensure roller have very small axial movement.
Galvanized shaft are available.

3. Bearing:
Deep-groove ball bearings, tolerance class P5 (DIN 620)
C4 radial clearance provides for optimum roller operation
Bearings are filled with lithium base grease throughout its service life
Nylon cage advantage: self-lubricating, abrasion resistance and low heat by friction, low noise, long service life
A variety of brands are available (HRB,ZWZ,LYC,SKF,FAG,TIMKEN,NSK,NTN etc.)

4. Bearing House:
Made of high quality cold-rolled steel plate, materials DC01(EN 10130), St12(DIN 1623)
High precision, smooth and no burr, bearing fit tolerance standard ISO M7
Perfect concentricity ensure the roller low T.I.R

5. Seal System:
The system comprises of inner seal, labyrinth seal, galvanized metal dust cover, protective cover
Inner lip seal prevent the pipe internal rusting entering the bearing, material is Nylon.
Labyrinth seal have two parts, female labyrinth seal and male labyrinth seal, both material are Nylon or POM,especially effective against the intrusion of outside contaminants
Labyrinth seal filled with lithium lubricating grease, maintenance-free throughout its service life
The labyrinth system can be fitted with a rubber friction ring to prevent the intrusion of water

Conveyor roller parameters

Conveyor Steel Roller Application

Conveyor steel roller is an important component for light to heavy industry bulk material handling equipment,

such as overland conveyors, coal-conveyors, high-speed trough belt conveyor system projects,

crushing and screening.

These equipment are widely used in coal and lignite mining, cement, quarries, tunneling,

power plants installation, ports, salt, iron ore, process plants and fertilizers, sugar plants, and recycling.

HEBEI QINYI CONVEYING EQUIPMENT CO.,LTD is founded in 1994, QINYI has professional production workshops and modern production lines. covering an area of more than 60,000 square meters, with the registered capital of more than USD1,888,000.

QINYI mainly engaged in designing and manufacturing bulk conveying systems and equipment, we are specialize in gravity conveyor. roller and pulley.QINYI products are widely used in mining, coal, port, power station,building and metallurgy, etc.

With the high quality, reasonable price, fast delivery, good after-sales service. QINYI has obtained the customer high praise and keep cooperation now.

In order to ensure the quality of the products, QINYI have passed the ISO9001:2000 quality management system certification. According to GB/T19001:2000 standard, QINYI has established a quality management system, which provides a reliable guarantee for the quality stability.

It's our principle in business to honor the contract and keep our promise.

QINYI has exported to Italy, Germany, Hungary, America, Holland, Chile, Tunisia, Malaysia, Vietnam, Philippines, Indonesia, Pakistan and many other countries.

QINYI welcome you to send us the inquiry and other questions, we would like to improve with you together and looking forward to cooperate with you at any time.
