    3 Phase Motor Motorized Conveyor Pulley

    Ask Lasest Price
    Brand Name : QINYI
    Model Number : Belt Conveyor Motorized Drum Pulley
    Certification : CE / ISO / FDA / SGS / TUV
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, Western Union
    Supply Ability : 5000 Ton/Tons per Month
    Delivery Time : 10~15 days
    • Product Details
    • Company Profile

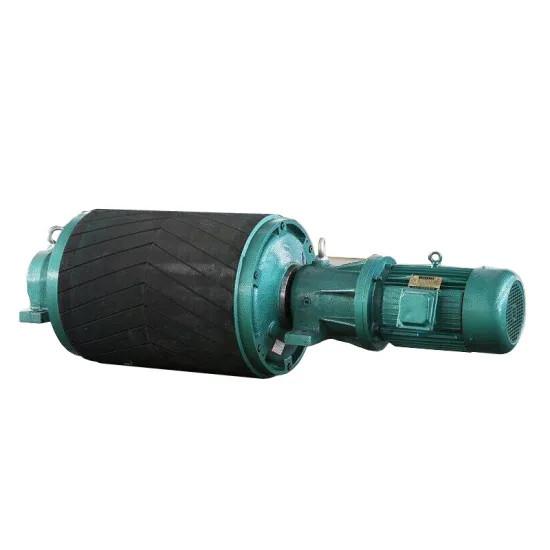

    3 Phase Motor Motorized Conveyor Pulley

    3 Phase Motor Motorized Conveyor Pulley
    Motorized Belt Conveyor Roller Idler Pulley With 3 Phase Motor
    Conveyor pulley stays at two ends of belt machine. To drive the belt to hand the material and to change the belt running direction. Conveyor pulley is very important parts on Belt Conveyor, it guide the belt running. There are kinds of pulley we supplied, like driving pulley, bend pulley, coating pulley. Regarding the rubber coating pulleys, there're vulcanized pulleys and cold adhesive pulleys. The type of rubber surface could be flat, herringbone and rhombic

    Advantage:
    1. Large capacity and Width;
    2. High speed running;
    3. Standard sapre parts, reliable working
    4. Strong conveyor structure ,
    5. Small vibrating and long lifespan for rollers.
    6. Be well dustproof and waterproof .
    7. High accurate steel pipes ensure the rollers/idlers running with low vibration and less noise.


    Advantages and Features
    1. Conveyor length can be customized according to your need.
    2. 0° - 30° inclination to suit the on-site conditions.
    3. Belt width can be 500-2400mm as your require.
    4. Low horsepower compared with other types of conveyor
    5. Belt conveyor cleaner is installed to clean the conveyor belt.
    6. Corridors are built along the belt conveyor for inspection and maintenance.
    7. Conveyor rollers are manufactured by our special roller production line, available of types of roller to ensure smooth conveyor system.
    8. Conveyor belt brand is YOKOHAMA, high quality and reliable.
    9. Motor brand can be domestic or imported: Yutong, Shuangyu, ABB, Siemens, WEG etc;
    10. Bearing brand can be domestic or imported: C&U, LYC, HRB , WZS, , NSK, SKF etc.

    conveyor pulley Description

    TypeBelt width(mm)Standard diameter(mm)Length(mm)
    drive pulley , tail pulley, snub pulley, take up pulley etc.500500Length of pulley according to different belt width and accept custamized size
    650500~630
    800630~1000
    1000800~1150
    Material:steel, SS
    Bearing Model:UCP,UCT or others
    Bearing Brand:HRB, LYC, ZWZ,SKF, NSK,C&U
    Working Life:≥30000 hours
    Diameter:D320mm to D630mm
    Belt Width:B500mm to B1000mm
    Application:recycling industry
    power industry
    parcel transport industry
    petro industry
    coal mining industry
    cement concrete industry
    machining industry
    Supply Ability:1pcs per day
    Certificate:ISO9001:2015, BV, SGS


    Advantages and Features


    1.Advanced welding capability ensure excellent quality of conveyor pulley.
    2.Shell cylinders are rolled from the highest quality flat plate and longitudinally seam welded with a prepared full penetration butt weld.
    3.Hub and end disc can be welded together or forged as one-piece depending on different types of pulley.
    4.Pulley shells are finish machined and can be rubber lagged according to your requirements.
    5.The dimension and tolerance of the pulleys also can be custom-made according to the drawing provided by you.
    6.Dynamic balancing grade is very common for our engineered pulleys. No balance weight outside the end disc is available upon request.
    7.With different sizes and lagging types available for you.
