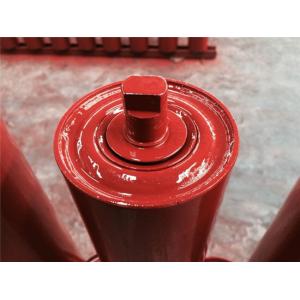

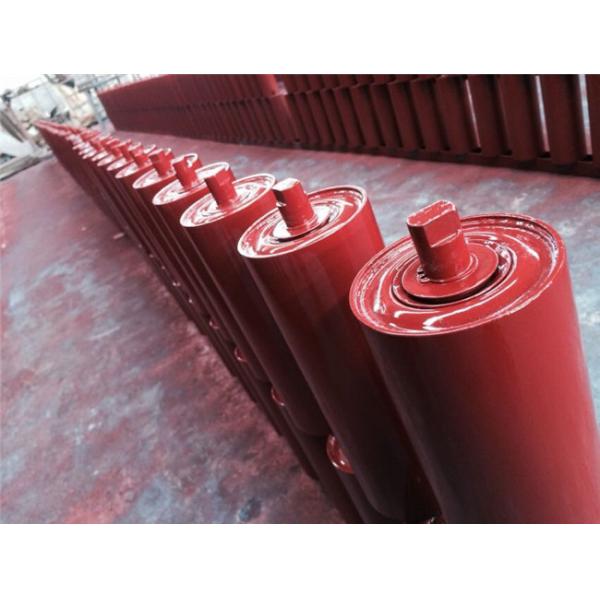

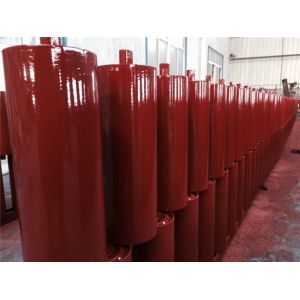

Belt Conveyor Vertical Side Guide Roll On Self Aligning Roller
The roller can be divided into driving roller (head pulley) and
thurnabout roller (tail pulley), driving roller is the main part
for transmitting the power : smooth surface and rubber surface, and
rubber surface can be classified into smooth rubber surface,
herringbone rubber surface and diamond rubber surface to meet
different technical requirements. Averting roller can be classified
into smooth rubber surface and smooth steel surface.
All the roller adopt integrated bearing housing which is lubricated
and filled with grease and has two kinds: iron casting and steel
casting, the shaft is made of 45#steel, the shell adopt weld
assembly.
Based on the above design, the roller is reasonably structured,
convenient type selected, performance reliable, long life time.
Our roller are of stable structure, good performance and long
operating life. They can work normally in dusty, wet and muddy
environment.
Types of Conveyor Roller
1. Idlers (raw materials): Rubber idler, nylon idler, ceramic
idler, insulation idler, steel idler, plastic idler;
2. Troughing idler: Forward tilt type idler, quick change bearing
type idler, hanging type idler, three chain idler, reversible
idler, variable groove angle idler, transition idler, V-type idler,
etc;
3. Parallel idler: Comb idler, forward inclined idler, steel rubber
idler and spiral idler;
4. Self-aligning idler: Universal type, friction idler, cone
tapered conveyor idler, spiral and combined idler;
5. Impact idler: Spring plate idler, buffer ring idler, strong
buffer idler, adjustable elastic idler, hanging idler.
conveyor roller Description
| Description | CEMA, DIN, JIS, AS, SABS, ISO Standard Design & JUXIN ODM |
| Pipe | 1) Material : Q235 carbon steel equal to DIN S235JR
2) Roller Diameter : φ63.5mm ~ φ219mm / 2 1/2 inch ~ 8 5/8 inch
3) Roller Length: 150mm ~ 3000 mm
4) Thickness : 3.0 ~6.0 mm |
| Shaft | 1) Material : 45# steel equal to DIN C45
2) Cold-drawn bright round steel
3) Shaft Diameter: 20mm, 25mm, 30mm, 40mm, 45mm, 50mm |
| Bearing | 1) Single Row Deep Groove Ball Bearing 2RS&ZZ with C3 clearance
2) Brand: SKF,FAG,NSK,HRB, LYC, ZWZ or according to your
requirement |
| Bearing Housing | 1) Material : Q235 carbon steel equal to DIN S235JR
2) Cold press working fit ISO M7 accuracy
3) Material thickness: 2.5mm ~ 5.0mm |
| Seals | 1) Labyrinth seal, nylon 6 material
2) JUXIN's patented product |
| Grease | 2# Lithium grease lubricant |
| Painting | 1) Ordinary painting, hot galvanized painting, Powder painting
2) Color: Black, red, yellow, blue or according to your requirement |
Conveyor Roller Frame details:
Application:
The products are widely used in coal mines, metallurgy, machinery,
ports, construction, electricity, chemistry, food packing and other
industries
1. Standard: ISO/BS/JIS/DIN/CEMA/Australia
2, High accurate steel material Q235
3, Lift time: more than 30000hours.
3, Production capacity: as usual 50pieces/day.
4. Roller Diameter: 76-219mm.
5. Roller Length: 190mm to 3500mm.
6. Finish: Galvanized/Painting
7. Welding: mixed gas shielded arc welding end.
8. Professional designing and inspection team.
9. Standard: ISO/BS/JIS/DIN/CEMA/Australia
