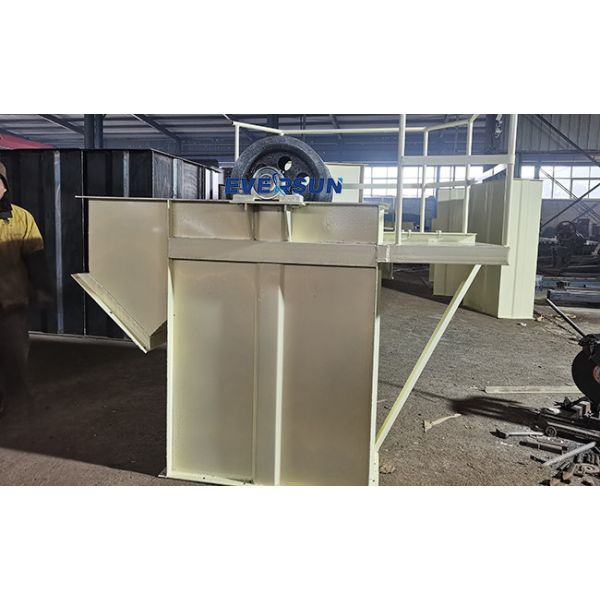

    NE Plate Chain Bucket Elevator Cement Sand Vertical Feeder Mine Elevator

    Ask Lasest Price
    Brand Name : EVERSUN MACHINERY
    Model Number : TD
    Certification : ISO,CE
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram, L/C
    Supply Ability : 5000SETS/YEAR
    Delivery Time : within 7-15 work days
    • Product Details
    • Company Profile

    NE Plate Chain Bucket Elevator Cement Sand Vertical Feeder Mine Elevator

    Product introduction


    NE Plate Chain Bucket Elevator Cement Sand Vertical Feeder Mine Elevator


    Bucket elevator is suitable for lifting from low to high, the supply material is put into the hopper through the shaking table, and the machine automatically and continuously runs upward. According to the amount of transmission can adjust the transmission speed, and choose the lifting height as needed, the hopper is designed and manufactured by itself, PP hopper makes the type of bucket elevator more convenient to use, all sizes are designed and manufactured according to actual needs, for supporting vertical packaging machine, computer metering machine design, suitable for food, medicine, chemical industry products, screws, nuts and other products to lift loading. The automatic stop and start of the machine can be controlled by the signal recognition of the packaging machine.

    .

    Product parameter


    NameNE Plate Chain Bucket Elevator
    Material

    Carbon steel, stainless steel

    ModelCustomized
    Power2.2-11 KW
    Application scopeGrain, alloy, chemical, coal, ore, etc
    Temperature< 80 degree
    Transmission deviceYZ type reducer ZQ or YY type reducer



    Main Features


    1. Drive power is small, the use of inflow feeding, induced discharge, large capacity of the hopper intensive arrangement, almost no material return and digging phenomenon when the material is lifted, so the ineffective power is less 2. The lifting range is wide, this kind of elevator has less requirements for the type and characteristics of the materials, which can not only improve the general powdery and small granular materials, but also improve the materials with large grinding, good sealing and less environmental pollution.

    3. Good operation reliability, unique design principle and processing method, increase the reliability of the whole machine operation, trouble-free time more than 20,000 hours. High lifting height. The elevator runs smoothly, so it can achieve a high lifting height.

    4. Long service life, the feed of the elevator takes the inflow type, there is no need to dig with a bucket, and there is rarely extrusion and collision between materials. The material is less scattered during feeding and unloading, which reduces mechanical wear.


    Working principle


    The hopper scoops the material from the storage below, and as the conveyor belt or chain is raised to the top, it flips down around the jacking wheel, and the bucket elevator dumps the material into the receiving tank. The transmission belt of the bucket elevator with transmission is generally made of rubber belt, which is installed on the transmission drum under or above and the reversing drum above and below. Chain driven bucket elevators are generally equipped with two parallel transmission chains, with a pair of transmission sprockets above or below, and a pair of directional sprockets below or above. Bucket elevators are generally equipped with a housing to prevent dust from flying in the bucket elevator.


    Application


    Quality NE Plate Chain Bucket Elevator Cement Sand Vertical Feeder Mine Elevator for sale
