Product Description:

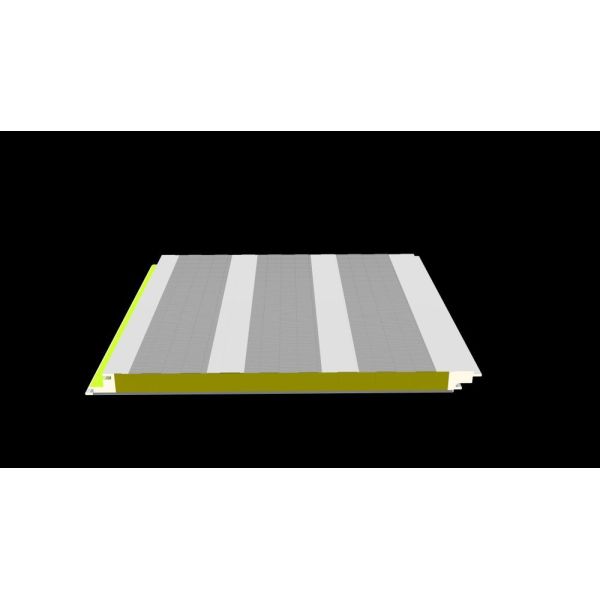

Baodu’s Insulated Acoustic Sandwich Panel includes : the external
layer is : Perforated steel plate or aluminum plate with the
openning of 3mm, the internal is galvanized steel plate or aluminum
plate+cement board , the core material is high density rockwool
panel and PU foam+Non woven fabric as below drawing.
In order to decrease the sound spreading around from the venues
with a noise source, Baodu Acoustic Sandwich Panel ensuring perfect
sound insulation by absorbing the sound is the correct choice.
Features:
1. Good Acoustic and thermal Insulation and energy saving material
2. Good Fire Resistance: Grade A
3. Special Connection Design: concealed connection
4. Graceful Finish: perforated
5. Advanced Machine: Customized machine
6. Raw Material: Only quality steel is selected.
7. Strict Quality Control:CE
8. Wide Usage: Used as roof and wall in workshop and warehouse
Technical Parameters:
| TESTING DATA OF BAODU ACOUSTICAL SANDWICH PANEL | | No. | REPORT ID | TESTING ORGANIZATION | PRODUCT NAME | MATERIAL STRUCTURE (BOTTOM-TO-TOP) | TOTAL THICKNESS (MM) | METAL THICKNESS (MM) | ROCKWOOL/ GLASSWOOL DENSITY (KG/m³) | CEMENT THICKNESS (MM) | DAMPING THICKNESS (MM) | SOUND ABSORBING DATA (NRC) | SOUND INSULATION (Db) | | TESTING STANDARD: GB/T 19889.3-2005/ISO140-3:1995 Acoustics -
Measurement of sound insulation in buildings and building elements
- Part 3: Laboratory measurement of airborne sound insulation of
building elements; | | 1 | KS-2021-09101 |
ACOUSTICAL MEASURING& TESTING STATION, CHINESE ACADEMY OF SCIENCE
|
SOUND
INSULATION
| STEEL PLATE +CEMENT BOARD+ROCKWOOL +STEEL PLATE | 100 | 0.6/0.5 | 120 | 10 | / | / | 38 | | 2 | KS-2021-09102 | STEEL PLATE +DAMPING+ROCKWOOL +STEEL PLATE | 100 | 0.6/0.5 | 120 | / | 3 | / | 37 | | 3 | KS-2021-09103 | STEEL PLATE +CEMENT BOARD+DAMPING +ROCKWOOL +STEEL PLATE | 100 | 0.5/0.5 | 120 | 10 | 3 | / | 39 | | 4 | KS-2021-09104 | STEEL PLATE +DAMPING+CEMENT BOARD +ROCKWOOL +STEEL PLATE | 100 | 0.5/0.5 | 120 | 10 | 3 | / | 41 | | 5 | KS-2021-09105 | STEEL PLATE +DAMPING+ROCKWOOL +DAMPING +STEEL PLATE | 100 | 0.5/0.5 | 120 | / | 3 | / | 37 | | 6 | KS-2021-09106 | STEEL PLATE +CEMENT+ROCKWOOL +DAMPING +STEEL PLATE | 100 | 0.5/0.5 | 120 | 4 | 3 | // | 37 | | 7 | KS-2021-09107 | STEEL PLATE +DAMPING+CEMENT BOARD +ROCKWOOL+ DAMPING +STEEL PLATE | 100 | 0.5/0.5 | 120 | 4 | 2 | / | 38 | | 8 | KS-2021-09108 | STEEL PLATE +CEMENT BOARD +DAMPING+ROCKWOOL +DAMPIGN+STEEL PLATE | 100 | 0.5/0.5 | 120 | 4 | 2 | / | 38 | | 9 | KS-2021-09109 | STAINLESS STEEL PLATE +ROCKWOOL +STAINLESS STEEL PLATE | 100 | 0.5/0.5 | 120 | / | / | / | 34 | | 10 | KS-2021-09110 | STAINLESS STEEL PLATE +ROCKWOO L+STAINLESS STEEL PLATE | 50 | 0.5/0.5 | 120 | / | / | / | 33 | | 11 | KS-2021-09111 | STEEL PLATE +ROCKWOOL +STEEL PLATE | 100 | 0.6/0.6 | 120 | / | / | / | 35 | | TESTING STANDARD: GB/T20247-2006/iso 354:2003 Acoustics
reverberation room sound absorption measurement | | 12 | KS-2021-09112 | ACOUSTICAL MEASURING& TESTING STATION, CHINESE ACADEMY OF SCIENCE | SOUND ABSORPTION | PERFORATED ALU PLATE +GLASS FIBRE+GLASSWOOL +STEEL PLATE | 80 | 0.6/0.6 | 64 | / | / | 0.95 | / | | | | | | | | | | | | | TESTING STANDARD:
1.: GB/T20247-2006/iso 354:2003 Acoustics reverberation room sound
absorption measurement;
2. GB/T 19889.3-2005/ISO140-3:1995 Acoustics - Measurement of sound
insulation in buildings and building elements - Part 3: Laboratory
measurement of airborne sound insulation of building elements; | | 13 | A19-134 | CENTER FOR BUILDING ENVIORNMENT TEST, TSINGHUA UNIVERSITY | SOUND ABSORPTION &SOUND INSULATION | PERFORATED STEEL PLATE +GLASS FIBRE+GLASSWOOL +CEMENT BOARD +STEEL PLATE | 100 | 0.5/0.5 | 64 | 6 | / | 0.9 | Rw+C=38dB; Rw+Ctr=34dB |
|
Applications:
BAODU Acoustic Sandwich Panel - High Durability and Moisture
Resistance
BAODU Acoustic Sandwich Panel is a sound absorbing panel, sound
insulation panel, soundproof panel with high durability and
moisture resistance. It is certified with CE and has a minimum
order quantity that is discussible. It is reasonably priced, with
customization on packaging. Delivery time is 15 days, and payment
terms include L/C, D/A, D/P, T/T, Western Union, and MoneyGram.
BAODU Acoustic Sandwich Panel has a high supply ability, with up to
5000 Square Meters per Day. It also comes with more than 50 years
of warranty, and after-sale service includes online technical
support and onsite installation. It is heat insulation and moisture
resistance, making it the ideal choice for sound insulation and
soundproofing applications.
Support and Services:
Technical Support and Service for Acoustic Sandwich Panel
Our team of experienced professionals provide technical support and
service for Acoustic Sandwich Panel. We are committed to helping
you find the right solution for your acoustic needs.
We provide both on-site and remote support for Acoustic Sandwich
Panel, with qualified technicians available to answer any questions
and provide technical assistance. Our team of experts can help you
determine the best solution for your acoustic needs, and provide
you with the information you need to make an informed decision.
We also offer maintenance and repair services for Acoustic Sandwich
Panel. Our technicians are experienced in troubleshooting and
repairing any issues related to Acoustic Sandwich Panel, and can
provide you with the necessary repairs to keep your system working
properly.
If you have any questions or need assistance with Acoustic Sandwich
Panel, please don't hesitate to contact us. Our team of experts is
here to help you find the right solution for your acoustic needs.
Packing and Shipping:
Acoustic Sandwich Panel Packaging and Shipping:
The acoustic sandwich panel should be packaged in a steel box
insert to prevent against any potential damage during shipping. The
box should be taped and labeled with the "Fragile" warning. The
acoustic sandwich panel should be placed on a pallet and secured
with a plastic strap for extra protection during the shipping
process.
FAQ:
Q&A about Acoustic Sandwich Panel
- Q: What is the brand name of this Acoustic Sandwich Panel?
A: The brand name of this Acoustic Sandwich Panel is BAODU. - Q: What is the model number for this Acoustic Sandwich Panel?
A: The model number for this Acoustic Sandwich Panel is Acoustic
Sandwich Panel. - Q: Where is this Acoustic Sandwich Panel from?
A: This Acoustic Sandwich Panel is from Hebei,China. - Q: What is the certification for this Acoustic Sandwich Panel?
A: This Acoustic Sandwich Panel is certified with CE. - Q: What is the minimum order quantity for this Acoustic Sandwich
Panel?
A: The minimum order quantity for this Acoustic Sandwich Panel is
Discussible.
