Product Description:

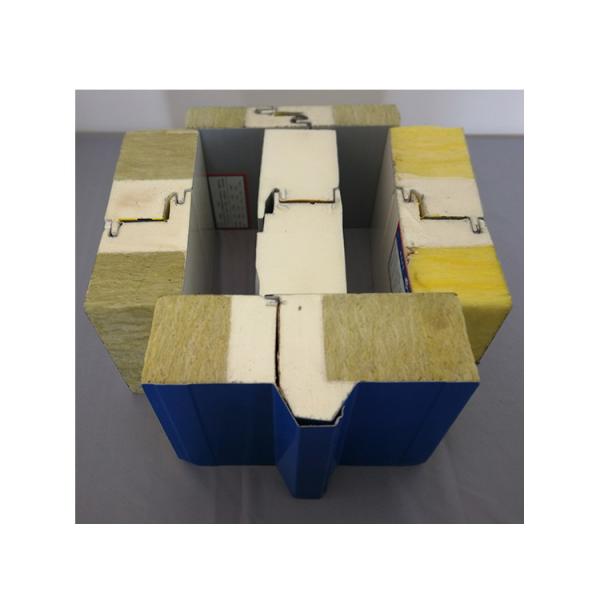

Our Glasswool Sandwich Panel is a foam color steel exterior wall
roof panel with fireproof glass wool sandwich panel as the core
material. It has a density of 64kg/m3. The panel is designed in a modern style and is available in a
variety of RAL colors. For a complete service experience, our
Glasswool Sandwich Panel includes online technical support and
onsite installation.
Features:
Heat insulation capability.
The heat insulation capability of the Glass wool sandwich panel
depends on the specifications of the filling material.
Good fire performance.
Glass wool sandwich panel is fire rating of non-combustible A
grade. Its shape, strength and material are hard to be changed in
the fire, it can protects your valuable life and properties.
Sound insulation and Sound absorption capability.
Sound insulation is a physical value what shows the rate of sound
energy decrease on the one side of a surface (e.g. wall or roof
cladding), while the noise source is on the other side.
Sound absorption values of panels can be increased by applying
perforated internal armouring and mineral wool insulation core.
Please feel fee to contact us if you have any question.
Technical Parameters:
| Allowable vertical load and thermal conductivity of BAODU new model
fireproof glasswool roof sandwich panel (allowable deflection
f≤L/200) | | S(mm) | W/m²K | G(kg) | P=KN/m2 | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 | | 50 | 0.69 | 12.95 | L(m) | 3.74 | 3.23 | 2.86 | 2.57 | 2.23 | | 70 | 0.47 | 14.50 | L(m) | 5.01 | 4.34 | 3.86 | 3.48 | 3.05 | | 100 | 0.36 | 16.04 | L(m) | 6.21 | 5.32 | 4.73 | 4.28 | 3.75 | | 125 | 0.34 | 17.06 | L(m) | 7.11 | 6.31 | 5.77 | 4.93 | 4.32 | | 150 | 0.33 | 19.14 | L(m) | 8.00 | 6.94 | 6.18 | 5.58 | 4.89 | | 200 | 0.30 | 22.78 | L(m) | 9.79 | 8.56 | 7.63 | 6.88 | 6.00 |
|
Applications:
Glass WOOL SANDWICH PANEL are applied as external walls and
internal division walls, installed vertically or horizontally on
single- or multi-span structure.
Industrial Buildings
Store Houses And Logistic Centres
Commercial Buildings And Offices
Food Industry Facilities
Agricultural Objects
Sport Halls
1, First of all, it must carry on the construction preparation
before installation, include personnel, materials, etc. All will be
well prepared.
2, Before the installation of mineral wool wall panel, it should
check whether the verticality and levelness of metope purlin
installation requirements, wall frame column vertical degree meets
the requirement.
3, Before installation mineral wool wall panel, it should first
mounting plate bottom water retaining plate and the bottom of the
window to block water board, water retaining plate and wall frame
beam connection with self tapping screw fixation.
4, Glass wool wall panel links with ground.
Support and Services:
Glasswool Sandwich Panel offers an excellent technical support and
service. The support includes an online user manual, user forums,
and an extensive library of FAQs. Additionally, there is a team of
experienced professionals available to respond to customer
inquiries and provide technical assistance. The team also provides
support for product installation and troubleshooting.
Packing and Shipping:
FAQ:
- Q: What is the brand name of Glasswool Sandwich Panel?
- A: The brand name is BAODU.
- Q: What's the model number of Glasswool Sandwich Panel?
- A: The model number is Glasswool Sandwich Panel.
- Q: Where is Glasswool Sandwich Panel produced?
- A: Glasswool Sandwich Panel is produced in Hebei, China.
- Q: Does the Glasswool Sandwich Panel have the CE certification?
- A: Yes, Glasswool Sandwich Panel has the CE certification.
- Q: How many Square Meters per Day can be supplied of Glasswool
Sandwich Panel?
- A: The maximum supply of Glasswool Sandwich Panel is 5000 Square
Meters per Day.
