Grade A Rockwool Sandwich Panel Roofing Sheets With Polyurethane Sealing Fireproof

Name: Grade A Rockwool Sandwich Panel Roofing Sheets With Polyurethane Sealing Fireproof
Brand: BAODU
Price: 1 USD

Ask Lasest Price
Brand Name :	BAODU
Certification :	CE,ISO9001
Price :	Discussible
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000 Square Meters per Day
Delivery Time :	15days

Add to Cart

Product Details
Company Profile

Grade A Rockwool Sandwich Panel Roofing Sheets With Polyurethane Sealing Fireproof

Rockwool Sandwich Panel With Polyurethane Sealing Fireproof Grade A Sandwich Panels

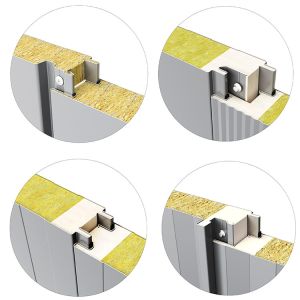

The rock wool clean plate use the color steel pressing plate as the surface layer,the structure rock wool as the central layer,use the special adhesive composite thus form a kind of sandwich structure plate.It belongs to strongs fire proof effect clean plate whose four side is sealed,add reinforcement of rib in the middle of the plate,to make the plate more smooth,more compression bearing.

Specification

Rockwool Sandwich Panel With Polyurethane Sealing Fireproof Grade A
Sandwich Panels
ProductRock Wool Sandwich PanelRock Wool Sandwich Panel with Pur or Pir Edge
Width1000mm1000mm
Top plate/Bottom0.4-1mm0.4-1mm
Core thickness50mm,75mm,100mm,120mm,150mm,200mm50mm,75mm,100mm,120mm,150mm,200mm
LengthLess than 11.8m (For transport need)Less than 11.8m (For transport need)
Density100-180kg/m3100-180kg/m3
ColorWhite, Red, Blue,CustomizedWhite, Red, Blue,Customized
Connection WayHiddenHidden
Sound insulation20-25db20-25db
Applicationvarious walls of large size factory warehouse, exhibition
halls,gymnasiumsvarious walls of large size factory warehouse,exhibition halls,
gymnasiums
Rockwool Sandwich Panel With Polyurethane Sealing Fireproof Grade A
Sandwich Panels
Features
1. Good Thermal Insulation, an energy saving material
2. Good Fire Resistance: B1 grade for total panel
3. Special Connection Design: Screw concealed connection
4. Graceful Finish: embossment, small wave, big rib and flat finish
5. Advance Machine: The longest main machine
6. Raw Material: Only quality steel is selected
7. Strict Quality Control:CE
8. Wide Usage: Used as roof and wall in workshop and warehouse
Technical parameters of BAODU new model fireproof sandwich panel
Allowable vertical load and thermal conductivity of BAODU new model
fireproof rockwool roof sandwich panel (allowable deflection
f≤L/200)
S(mm)W/m²KG(kg)P=KN/m20.600.801.001.201.50
500.7515.53L(m)3.663.132.752.462.12
700.5318.37L(m)4.904.223.733.352.91
1000.4121.21L(m)5.995.174.584.123.59
1250.3624.05L(m)6.915.965.284.794.14
1500.3126.88L(m)7.826.755.985.374.68
2000.23
22.78L(m)9.658.337.386.625.77
Allowable vertical load and thermal conductivity of BAODU new model
fireproof glasswool roof sandwich panel (allowable deflection
f≤L/200)
S(mm)W/m²KG(kg)P=KN/m20.600.801.001.201.50
500.6912.95L(m)3.743.232.862.572.23
700.4714.50L(m)5.014.343.863.483.05
1000.3616.04L(m)6.215.324.734.283.75
1250.3417.06L(m)7.116.315.774.934.32
1500.3319.14L(m)8.006.946.185.584.89
2000.3022.78L(m)9.798.567.636.886.00

Project Case

Company Profile
Baodu International Advanced Construction Material Co., Ltd was established in January 2010 with the office in Beijing and
factory in Hebei, China. Baodu is a designer, manufacturer,
supplier and exporter of industrial noise comprehensive treatment,
steel structure, sandwich panel and prefab house. Baodu has an
annual output of 6 million square meters of acoustic sandwich
panels, 100000 tons of steel structures and 1 million square meters
of floor decking sheet. The products are sold in more than 30
countries and regions around the world. Baodu has a professional
design team with more than 10 years’ experience, including 5 senior
engineers, 20 engineers, and 35 technicians. Baodu has several
energy saving and environment protection intellectual property
rights, construction and environment protection design
qualification, CE certification and Russian GOST certification etc.
Baodu participated in the military parade village project for the
60th anniversary of China and project of Beijing Daxing
International Airport. Under the guidance of China's "one belt, one
road" strategy, Baodu has also undertaken overseas projects such as
the project of Thar,Pakistan coal fired power plant, Hasyan Dubai
power plant and so on. Finally, welcome your coming to Baodu for a
visit and cooperation!
