Baodu Mineral Wool Core Sandwich Panels.Its two outer sheets are
joined by a central insulating core formed by mineral wool (rock or
glass). This allows our Mineral Wool Core sandwich panels to
achieve high resistance and fire resistance, making them an ideal
product for any sector in which this problem is a priority:
industrial construction, public assistance, residential
construction, shipbuilding, etc.

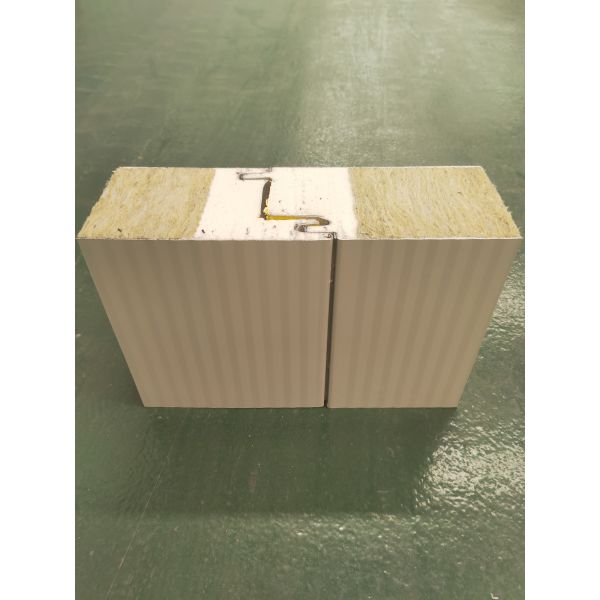

Pu Sealing RockWool Sandwich Panel Insulated Thermal Fireproof
Waterproof Exterior | Product | Rock Wool Sandwich Panel | Rock Wool Sandwich Panel with Pur or Pir Edge | | Width | 1000mm | 1000mm | | Top plate/Bottom | 0.4-1mm | 0.4-1mm | | Core thickness | 50mm,75mm,100mm,120mm,150mm,200mm | 50mm,75mm,100mm,120mm,150mm,200mm | | Length | Less than 11.8m (For transport need) | Less than 11.8m (For transport need) | | Density | 100-180kg/m3 | 100-180kg/m3 | | Color | White, Red, Blue,Customized | White, Red, Blue,Customized | | Connection Way | Hidden | Hidden | | Sound insulation | 20-25db | 20-25db | | Application | various walls of large size factory warehouse, exhibition
halls,gymnasiums | various walls of large size factory warehouse,exhibition halls,
gymnasiums |
Pu Sealing RockWool Sandwich Panel Insulated Thermal Fireproof
Waterproof Exterior |
Features
High mechanical resistance
High level of thermal resistance
High level of acoustic resistance
High resistance to fire
Our technology is unique
The secret of customising each of our panels lies in our continuous
manufacturing process which guarantees uniformity of the parts and
makes planning more flexible. It allows the production of designs
with different lengths and thicknesses (from 30 to 200mm), made to
order accessories and finishes adapted to climatic and
environmental factors.
The high acoustic properties of our Mineral Wool Core sandwich
panels significantly improve the environmental quality in the
industrial sector, providing truly innovative solutions.
More than a mass-produced product, each unit of our Mineral Wool
sandwich panels is the result of listening to the customer, their
needs and concerns. We create a differentiated response in
collaboration with the client, which allows us to provide you with
the specific solutions you need during each phase of the project
and the execution of your work.
| Technical parameters of BAODU new model fireproof sandwich panel |
| Allowable vertical load and thermal conductivity of BAODU new model
fireproof rockwool roof sandwich panel (allowable deflection
f≤L/200) |
| S(mm) | W/m²K | G(kg) | P=KN/m2 | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50 | 0.75 | 15.53 | L(m) | 3.66 | 3.13 | 2.75 | 2.46 | 2.12 |
| 70 | 0.53 | 18.37 | L(m) | 4.90 | 4.22 | 3.73 | 3.35 | 2.91 |
| 100 | 0.41 | 21.21 | L(m) | 5.99 | 5.17 | 4.58 | 4.12 | 3.59 |
| 125 | 0.36 | 24.05 | L(m) | 6.91 | 5.96 | 5.28 | 4.79 | 4.14 |
| 150 | 0.31 | 26.88 | L(m) | 7.82 | 6.75 | 5.98 | 5.37 | 4.68 |
| 200 | 0.23 | 22.78 | L(m) | 9.65 | 8.33 | 7.38 | 6.62 | 5.77 |
| Allowable vertical load and thermal conductivity of BAODU new model
fireproof glasswool roof sandwich panel (allowable deflection
f≤L/200) |
| S(mm) | W/m²K | G(kg) | P=KN/m2 | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50 | 0.69 | 12.95 | L(m) | 3.74 | 3.23 | 2.86 | 2.57 | 2.23 |
| 70 | 0.47 | 14.50 | L(m) | 5.01 | 4.34 | 3.86 | 3.48 | 3.05 |
| 100 | 0.36 | 16.04 | L(m) | 6.21 | 5.32 | 4.73 | 4.28 | 3.75 |
| 125 | 0.34 | 17.06 | L(m) | 7.11 | 6.31 | 5.77 | 4.93 | 4.32 |
| 150 | 0.33 | 19.14 | L(m) | 8.00 | 6.94 | 6.18 | 5.58 | 4.89 |
| 200 | 0.30 | 22.78 | L(m) | 9.79 | 8.56 | 7.63 | 6.88 | 6.00 |
Advantages
Easy assembly
The simplicity of baodu anels, together faster assembly than any
other cladding solution.
Eco-friendly
Each unit of energy consumed in the manufacturing process saves the
equivalent of 25 units when in use.
Air-tightness and water-tightness
The surfaces of baodu panels are waterproof and air-tight.baodu
mineral wool is water resistant thanks to its waterrepellent
qualities.
Acoustics
The elasticity of their open structure gives the panels a high
capacity to absorb the acoustic energy produced by noise and avoids
the coupling effect of stationary sound waves.
Fire and flame resistance
Being inorganic the panels do not burn nor produce smoke. In
addition, they maintain their thermal insulation capacity even at
high temperatures.
Hygiene
Mineral wools are inert elements which do not allow the growth of
microorganisms nor insects. They do not serve as insulation for
rodents and are nonbiodegradable.
