Plastic 8mm Height Dimple Drainage Mat Board Waterproofing Material

Ask Lasest Price
Brand Name :	zhongloo
Model Number :	Customer-made
Price :	USD 0.56-1.32 per square meter
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	60000 square meters per day
Delivery Time :	10-15 days

Add to Cart

Product Details
Company Profile

Plastic 8mm Height Dimple Drainage Mat Board Waterproofing Material

Plastic Roof Garden Water Storage Drainage Board

Product introduction

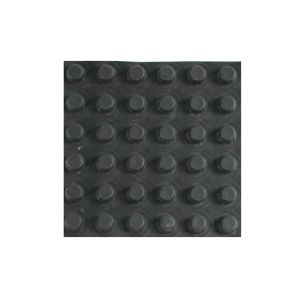

Drainage Board with dimple is made from high density polyethylene plastic and it is a kind of geomembrane with dimples on the surface. The dimples can be in cylinder and semi cone shape. It could also be coated by non woven geotextile. The liquid and gas can go through freely between dimples.

Technical parameter

Plastic drainage board
item		Specification
Tension at 10% elongation (N/100mm) ≥		350
Maximum pulling force (N/100mm) ≥		600
Elongation at break /% ≥		25
Tear performance/N ≥		100
Compression performance	Maximum strength when compression rate is 20%/KPa ≥	150
	Extreme compression performance	No break
Low temperature flexibility		-10℃ no cracks
Heat aging	Tensile retention at 10% elongation≥	80
	Maximum tensile retention rate/(N/100mm) /% ≥	90
	Elongation at break retention rate /% ≥	70
	Maximum strength retention rate when the compression rate is 20% ≥	90
	Extreme compression performance	No break
	Low temperature flexibility	-10℃ no cracks
Longitudinal water flow (test pressure 150KPa) (cm²/s) ≥		10

Feature

1. Drainage cell has the functions of building layer drainage, discharging soil infiltration water and storing part of infiltration water.
2. Drainage cell can store water and is conducive to the growth of vegetation.
3. Drainage cell has good compressive strength.
4. Convenient construction, simple maintenance and economic.
5. Drainage cell has Strong load resistance and durability.
6. Ensure that excess water can be quickly drained away.
7. Drainage cell can provide sufficient water and oxygen for plant growth.
8. Lightweight and strong roof insulation.
