    Grey Gear Carbide Hobing Cutter High Hardness Monolayer Multilayer Coating

    Ask Lasest Price
    Brand Name : AOJIA
    Payment Terms : L/C
    Price : negotiation
    Delivery Time : within 10 working days
    • Product Details
    • Company Profile

    Grey Gear Carbide Hobing Cutter High Hardness Monolayer Multilayer Coating

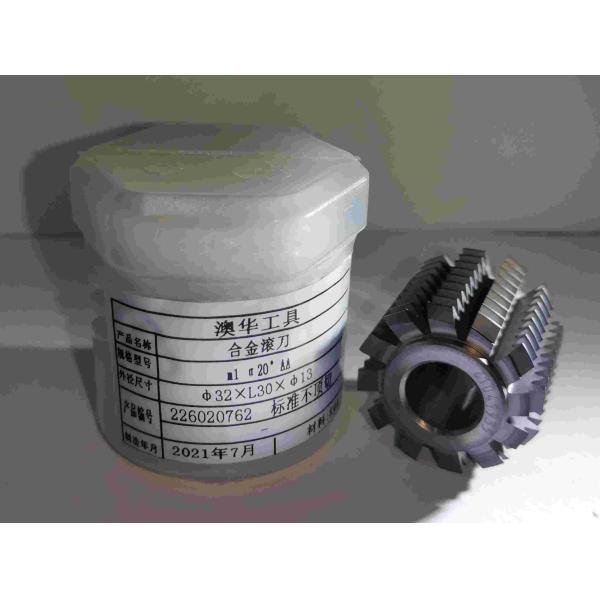

    Carbide Hob Cutter

    Table of carbide hob coating types
    Nocoating materialhardness(HV)Coefficient of friction for steel (dryness)Internal stress(Gpa)Maximum applicable temperature (Celsius)The color of the coatingcoating structure
    1TIN23000.4-2.5600goldenmonolayer
    2AlCrN32000.35-31100blue greymonolayer
    3TiCN30000.4-4400blue greymultilayer
    4WC/C1000/20000.10-0.20-1300Black graylaminal
    5CrN17500.50.75700silver graymonolayer
    6polycrystalline diamond8000-100000.15-0.20600LightGraymonolayer
    7iAlN33000.30-0.350.866666667900Purple-greyNano-structure

    GRADES OF CEMENTED CARBIDE RODS AND BARS

    ISO CORRESPONDINGWC%Co%Density g/cm3Hardness HRATRS N/mm2WC grain size
    K1094614.9092.5>=3000FINE GRAIN
    K05-K1094614.8593.0>=3500ULTRA-FINE GRAIN
    K20-K3092814.6592.6>=3600ULTRA-FINE GRAIN
    K30-K40901014.4592.0>=3800ULTRA-FINE GRAIN
    K30-K40901014.4091.5>=4000ULTRA-FINE GRAIN
    K05-K1094614.7093.5>=3500

    SUPER-FINE GRAIN


    K30-K40901014.3592.5>=3800

    SUPER-FINE GRAIN


    K40881214.1592.3>=4300

    SUPER-FINE GRAIN


    The content of tungsten and cobalt is nominal value, the density and hardness are typical values, just for your information.
