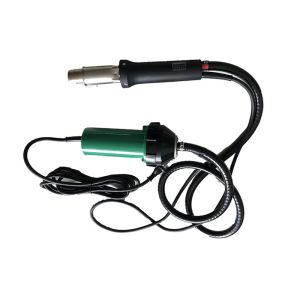

SWT - NS2000 portable 1600W Hot Air Gun soldering Industrial
Fabrics welding tool
Hot Air Gun Presentation:
This type of hot air gun is sort of our company’s new style manual
hot air welding tools which on top of technology
and got CE certificate. It is suitable for welding hot plastic material like PVC ,PP,PE,
PVDF, EVA,ECB,TPO etc.
and also used for thermos forming,shrinking,drying,igniting
operation.
Hot Air Gun Specification:
| Style.no. | SWT-NS2000 |
| Voltage | 220V |
| Power | 1600W |
| Frequency | 50/60HZ |
| Temperature | 20-650℃ distance adjustable |
| Min.air volume | 40L/Min |
| Weight | 1.4Kgs (including 3m cable and 3m air tube) |
| Size | 265*57mm |
Hot Air Gun Application:
1. Welding of thermoplastic materials as well as single-ply
flexible plastics and modified bitumen in the form of
boards, tubes, profiles, lining membranes, coated materials, films,
foams, tiles and sheets. The following
procedures are possible: overlap welding, welding with rod, with
tape, butt welding and melt welding.
2. For foaming, ending and sealing of the thermoplastic
semi-finished materials and plastic granules.
3. Drying of water-damp surfaces.
4. Shrinking of heat-shrink sleeves, films, tapes, solder sleeves,
preformed and mould part.
5. Soldering of copper pipes, solder joints and metal foils.
6. Defrosting of frozen water pipes.
7. Activating and dissolving of solvent free adhesive and fusion
adhesives
8. Igniting of wood shavings, paper, coal or straw in furnaces
Workshop Display:
Service and repairs:
1. The motor switches off automatically when the brush reach their
minimum length. Have the tool checked by
your service center. The life of the brushes is about 800 hours.
2. Repairs should be carried out by authorized SWT service centers
only. They guarantee a specialized and
reliable service.
3. Sorry for not special notice in advance if there would be
changes on parameters
