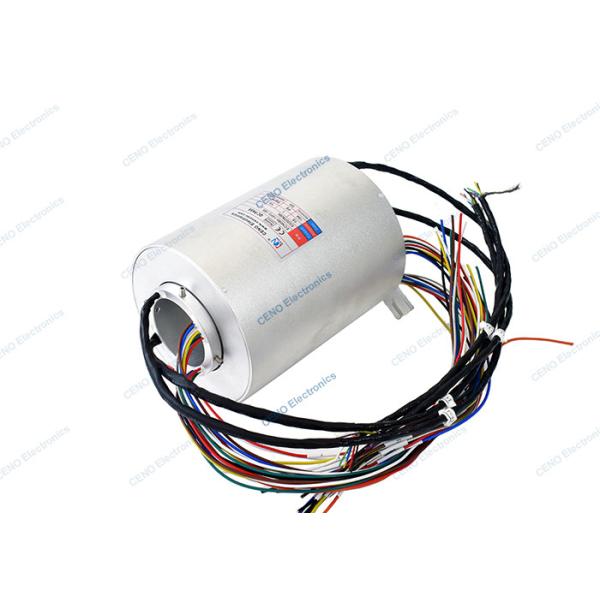

    Power / Encoder Integrated Slip Ring With Through Hole Rotary Electrical Joint

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN050-15P2-15S
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    Power / Encoder Integrated Slip Ring With Through Hole Rotary Electrical Joint


    Power and Encoder Integrated slip ring with Through hole rotary electrical joint


    ECN050-15P2-15S is CENO new design integrated slip ring which combined electrical power and 15 circuits Encoder. As we know that an encoder slip ring is a component used to measure or control the position, speed or direction of an object in a system. It measures and controls by converting physical qualities by converting physical quantities such as position, speed or direction into digital signals. Encoder slip ring often apply to the industrial automation, robotics, aerospace, automotive safety systems etc. For more information please contact us.


    Features

    • Encoder signals
    • Integrated designs and can be combined many kinds signals
    • Install easily & transmit stably
    • Customized product

    Applications

    • Automatic machine
    • Robotics
    • Automotive safety system
    • aerospace
    • Medical equipment

    Optional

    • Circuit, Voltage, Current
    • Signal type
    • Contact / Housing Materials
    • Installations
    • Working speed


    Specification

    ECN050-15P2-15S

    Specification
    Current & Circuits

    15circuits*10A; 1*PE; 15circuit*Encoder

    Rating Voltage

    0~380VAC/VDC

    Dielectric strength

    ≥1500VAC@50Hz

    ≥500VAC@50Hz

    Isolation resistance

    ≥500MΩ@500VDC

    ≥100MΩ@100VDC

    Electrical Noise30mΩ (50rpm)
    Contact materialPrecious Metal
    Housing materialAluminum Alloy
    Working temperature-20°C~+80°C
    Working humidity60 %RH
    IP protection gradeIP51
    Operating speed0~200rpm
    Lead wire size

    AWG17# Wire Teflon® UL

    8core twisted shielded wire

    Lead wire length

    Rotor : 300mm

    Stator : 300mm

    Inner DiameterØ50mm
    External DiameterØ119mm
    InstallationFix stator side upon Shaft with screws

    Outline Drawing


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
