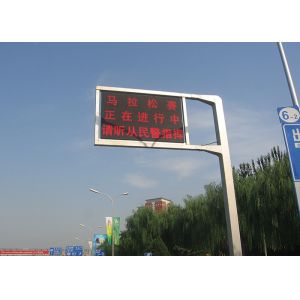

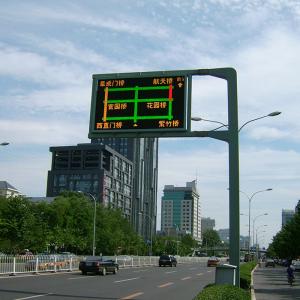

P16 Electronic Traffic Control Signs Gantry Road Digital Board
Variable message sign highway gantry LED signs digital board P16
Lifespan >100000 hrs

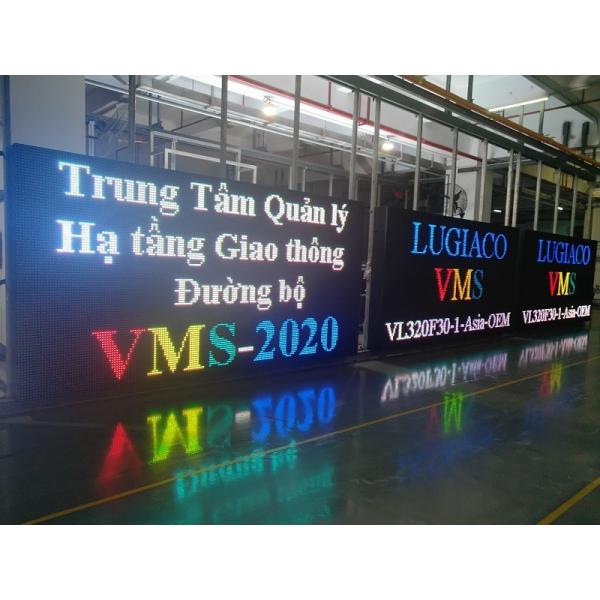

Variable Message Signs (VMS) are quite commonly used for the
traffic warning information of road & bridge construction,
fire-fighting, parking lots, etc. The high brightness and strong
eye-catching LED technology deliver the traffic information to the
driver, remind them to fo-cus on their driving speed and pay
attention to the weather, road situation, and so on. It can reduce
the traffic accident by deploying the road traffic management.
High color consistency
With a much improved flatness, diode spectrum and brightness are
able to re- main the same, making the color more consistent and
content more readable
Better contrast ratio
The surface of each optical len is designed with carved strips that
could reduce light reflection.
Thinner cabinet
New OT16 and OT20 modules measure only 40mm and 35mm thick respec-
tively, 50% thinner than the previous generations, facilitating
installation.
High stability
Less manual production and compo- nent processes, less potential
failure rate, bringing the new module up to a new level of
stability.
product introduction:
Provide high brightness, standard brightness and high density 3
kinds of modules, in line with various application requirements of
LED variable intelligence board.
The modular design covers the different needs of various road
sections such as 2-lane, 3-lane, and 4-lane.
The brightness is optional from 8500 to 15000nits, and it can
display the red, green and yellow Chinese characters and icons
specified by the national standard.
Strictly follow GBT 23828-2009 standard for material selection,
design, production and testing
| Item | YHT-VMS-OT10 | YHT-VMS-OT12 | YHT-VMS-OT16 | YHT-VMS-OT20 | YHT-VMS-OT25 | YHT-VMS-OT31.25 |
| Pixel pitch | 10mm | 12mm | 16mm | 20mm | 25mm | 31.25mm |
| LED type | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens |
| Pixel density | 10000 pixels/m² | 6944 pixels/m² | 3906 pixels/m² | 2500 pixels/m² | 1600 pixels/m² | 1024 pixels/m² |
| Module dimension | 320×160 mm | 192×192 mm | 256×128 mm | 320×160 mm | 200×200 mm | 250×250 mm |
| Module resolution | 32×16 | 16×16 | 16×8 | 16×8 | 8×8 | 8×8 |
| Screen weight | 65kg/m² |
| Cabinet dimension | 960×960 mm | 960×960 mm | 1024×1024 mm | 960×960 mm | 1000×1000 mm | 1000×1000 mm |
| Brightness | L3,L3*:EN12966 (Red: >3100nits, Green>3720nits,
Blue>1240nits, Amber>7440nits, White:>12400nits) |
| Brightness adjustment | 32/256 |
| Color coordinates | C2: EN12966 | C2: EN12966 | C2: EN12966 | C2: EN12966 | C2: EN12966 | C2: EN12966 |
| Refresh rate | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz |
| Display control | Asynchronous control system available |
| Display capacity | Text, image, graphics animations |
| Lifespan | >100000 hrs | >100000 hrs | >100000 hrs | >100000 hrs | >100000 hrs | >100000 hrs |
| Power supply | 12-24V DC/110-230V AC |
| Max. Power consumption | 400W/m² | 380W/m² | 250W/m² | 220W/m² | 220W/m² | 220W/m² |
| Avg. Power consumption | 130W/m² | 120W/m² | 80W/m² | 70W/m² | 70W/m² | 70W/m² |
| Operation temperature | -25~ +60°C |
| Storage temperature | -40~ +80°C |
| Store humidity | 15%~ 95% | 15%~ 95% | 15%~ 95% | 15%~ 95% | 15%~ 95% | 15%~ 95% |
1. who are we?
We are based in Guangdong, China, start from 2002,sell to Domestic
Market(41.00%),North America(30.00%),Southeast
Asia(6.00%),Oceania(6.00%),Eastern Asia(4.00%),Northern
Europe(3.00%),Southern Europe(3.00%),Eastern Europe(2.00%),Mid
East(2.00%),Western Europe(2.00%),South Asia(00.00%). There are
total about 501-1000 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Taxi Roof LED Display,VMS Trailer,Variable Message Sign,Rental LED
Display,Speed Limit Sign
