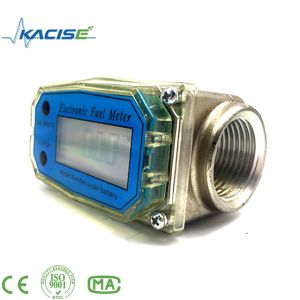

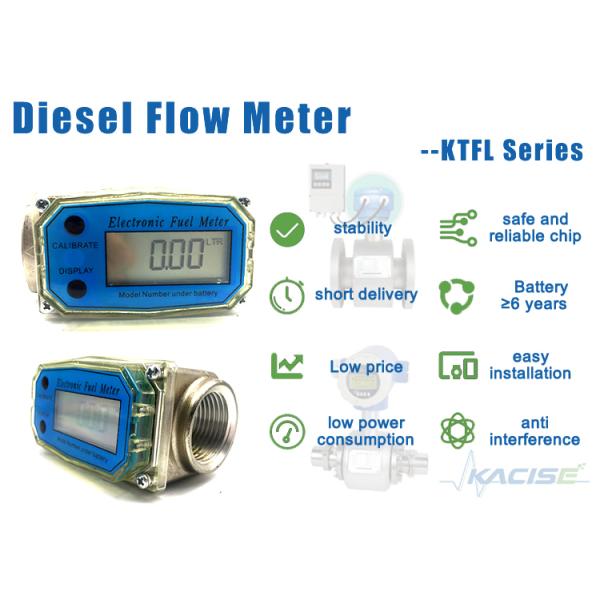

Intelligent Mini Micro Turbine Fuel Oil Diesel Flow Meter

Description

Please install the battery before use
For different country use, the high accuracy meter comes with 4 unit options Liters (L) /Gallons (GAL)/ Pints (PT)/ Quarts (QT). The battery inside can supply 9000hours operation approximately. By fine adjusting, the accuracy of the meter can be as high as ±0.3%.

Technical Data

Connector: BSPT1”
Voltage: DC 2.3V-3.3V
Max.Pressure: 0.25Mpa
Precision: ±0.5%
Flow: 20-120L/min
Usage: Diesel, Kerosene, Gasoline
Working Temp.-10~+60℃
Battery: AAAsize×2
Stand-by time: 2 years
LCD Display: 5-digit
Single count: 0.00-9999.9
Accumulation: 0-99999

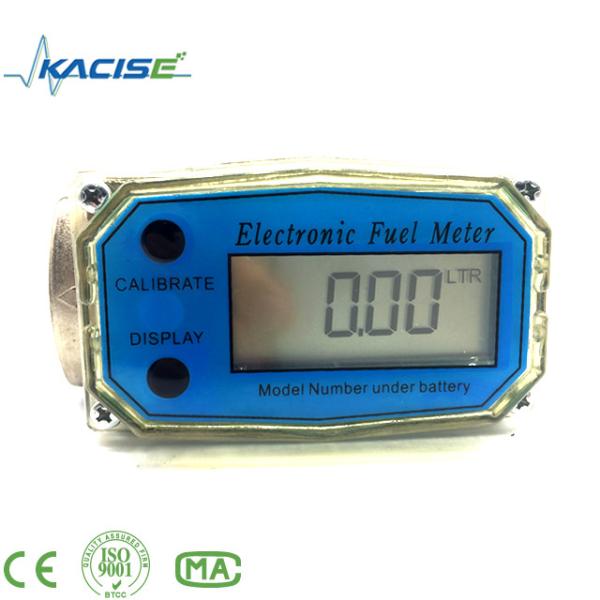

Fuctions

Reset to “0”
Press “DISPLAY” for 1second reset to zero.

Cumulative Total
Press “CALIBRATE” indicating the cumulative total fueling. When the cumulative total reaches a maximum reading 999,999, it will automatically reset to zero.

Calibrate adjusting

Press“CALIBRATE” and hold for 5 seconds, press “DISPLAY” or “CALIBRATE” for adjusting. For example, when the meter shows 100L while the liquid comes 105L put the coefficient1.0000-0.05=0.9500 when the meter shows 100L while the liquid comes 95L put the coefficient1.0000+0.05=1.0500 .And the display is programmed to turn back to stand-by situation after 5 seconds. ( The initial coefficient is 1.0000)

Units Switch

Press“CALIBRATE” and hold for 5 seconds, press “DISPLAY” for 5 times and then press“CALIBRATE” for units swith among Liters(L) / Gallons(GAL) / Pints(PT) / Quarts(QT). . And the computer display is programmed to turn back to stand-by situation after 5 seconds

Maintenance
The meter is virtually maintenance-free. How-ever, it is important the rotor moves freely. Keep the meter clean and free of contaminants.If the rotor does not turn freely, apply a penetrating lubricant on the rotor, shaft, and bearings.Remove any debris or deposits from the rotor using a soft brush or small probe. Be careful not to damage the turbine rotor or supports.
Replace batteries when “L Bat” comes

PS: For the most accurate reason, before using, make sure there is no air in the system and meet the meter’s minimum flowrate requirements. Please keep the meter away from the magnetic objects or shock the meter.

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

We supply high quality Turbine Flow Meter, hope we can coopperate in near future by providing you suitable products, good services and reasonable prices.

• Your inquiry will be replied in 24hours.
• Well-trained and experienced staffs to answer all your enquires in fluent English.
• OEM&ODM, we can help you to design and your request will be put into product.
• Distributorship are offered for your unique design and some our current models.
• Protection of your sales area, ideas of design and all your private information.
• Discounts are offered based on order quantities.

2. Q: Are you a trade company or a manufacturer?

A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

OEM & ODM service are available. Welcome to visit us in China.

3. Q: What is your MOQ?

A: To start our cooperation, sample order is acceptable.

4. Q: What is your delivery date for the Intelligent Mini Micro Turbine Fuel Oil Diesel Flow Meter?

A: The delivery date is about 3-15 working days after receipt of payment.

5. Q: What is your payment terms?

A: We support T/T, PayPal and Trade Assurance.

For mass production order, it is 30% deposit in advance and 70% balance before shipment.

6. Q: What is Trade Assurance payment method:

A: It’s a free service which can protect your orders from payment to delivery.

And we now have USD104,000.00 of caution money to assure your orders.

7. Q: Do you have a warranty for the Intelligent Mini Micro Turbine Fuel Oil Diesel Flow Meter?

A: Yes, we have the warranty of 12 months.
