6 Cavity/High Speed/Full Automatic/Servo For Blowing The Bottle Up
To 2L High Speed Pet Blowing Plastic Machine
PET Bottle Automatic Bottle Blowing Machine Plastic Particles Pet
Model
The blow molding machine is a kind of equipment that makes plastic
particles into hollow containers through the blow molding process.
At present, the more common models include hollow extrusion blow
machines that use PP and PE for one-time molding, and PET, PC or PP
for two-time molding. Advanced injection stretch blow molding
machines, as well as the newly developed multi-layer hollow
extrusion blow molding and stretch blow molding.

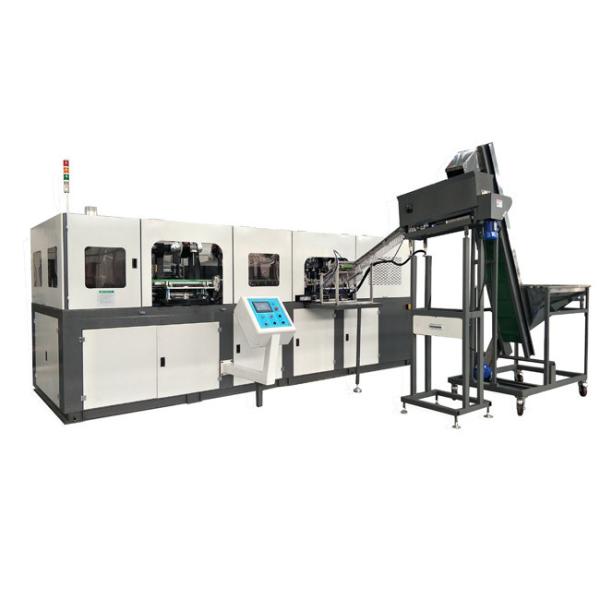

WT-A6 is the fastest liner blow molding machine in mainland of
China by now. WT-A6 reaches around 5000-5500BPH for 350ML bottle.
Its baking tunnel is separated from the blow station so that time
for mold opening is shortened with a result of speedy blowing and
high output, damage to machine is lessened so as to keep reliable
performance and prolong service life, as well as machine runs more
smoothly and steadily.
WT-A6 is controlled by PLC. The whole process from preform feeding
to bottle discharging is completed automatically with advantages of
labor saving and no pollution. WT-A6 consists of three main parts:
preform loading system, Heater channel & blow station.
production process
1. Preheating
The preform (embryo) is irradiated by an infrared high-temperature
lamp tube to heat and soften the body part of the preform (embryo).
In order to maintain the shape of the bottle mouth, the mouth of
the preform (embryo) does not need to be heated, so a certain The
cooling device performs cooling operation on it.
2. Blow molding
In this stage, the preheated preform (embryo) is placed into the
blow mold that has been prepared, and the inside is inflated with
high pressure, and the preform (embryo) is blown into the required
bottle.
Blow molding machines on the market are generally divided into two
types: fully automatic and semi-automatic.
The automatic bottle blowing machine combines the two operations of
bottle blowing through the operation of the manipulator,
eliminating the need to manually put the preheated preform (embryo)
into the blow mold. The production rate is greatly accelerated, and
of course the price is higher than that of semi-automatic ones.
MACHINE FEATURES:
- Machine use of advanced PLC control system , stable in performance,
automatic preform feeding;
- Strong penetrability and good and swift distribution of the heat by
letting the bottles rotate by itself and revolute in the rails
simultaneously in the infrared preheater;
- High adjustability to enable the preheater to preheat preforms in
shapes by adjusting the light tube and the length of the reflecting
board in the preheating area, and eternal temperature in the
preheater with an automatic thermostatic apparatus;
- High safeties with security automatic-locking apparatus in each
mechanical action, which will make the procedures turn into a state
of safety in case of a breakdown in certain procedure;
- No contamination and low noise with the air cylinder to drive the
action instead of the oilpump;
- Air route design is divide into two parts;
- Ideal effect of the chilling with the chilling system;
- Low rejection rate: less than 0.3percent.
Parameter
Container | Max Volume | L | 2 |
Max Neck Diameter | mm | 38 |
Max Container Diameter | mm | 105 |
Max Container Height | mm | 335 |
Cavity |
| 6 |
Theoretical Output | bph | 6000(*) |
Electrical | Clamping force | KN | 600 |
Heating Power | KW | 80 |
Max Heating Power | KW | 120 |
Air Compressor | Operating Pressure | Mpa | 0.8 |
Low Pressure Consuming | L/min | 1400 |
Blowing Pressure | Mpa | 3.0 |
High Pressure Consuming | L/min | 4000-6000(**) |
Chiller | Pressure | Mpa | 0.3-0.5 |
Temperature | ℃ | 10-12 |
Flow Rate | L/min | 30 |
Machine | Machine Size | m | 5.2x1.93x2.03 |
Machine Weight | Kg | 6000 |
(**)Depending on bottle size, shape and weight. (*)Depending on bottle size and operation conditions. |
1.Adopting advanced microcomputer control system, with stable
performance; 2.Using infrared light tubes for heating, with strong
penetration, the bottle preform rotates and is heated, and the
track rotates, heating is uniform, fast and reliable;
3.The width and height of the lamp tube and reflector in the
heating zone can be adjusted to suit the heating of different
structure bottle preforms, and there is an automatic temperature
exhaust device to ensure the constant temperature of the drying
channel; 4. Each mechanical action has a safety self-locking
device, and when a certain process malfunctions, the program will
automatically switch to a safe state; 5.Each action is driven by a
servo system: stretching servo, displacement servo, mold closing
servo, upper embryo servo, without using traditional cylinders,
with advantages such as energy saving, stability, and precise
control of various parts of the action; 6.Adopting high-pressure
and hyperbolic arm connecting rod locking, with strong locking
force; 7. The machine adopts a four template structure with double
opening and double closing, saving mold locking time and greatly
increasing machine output. This structure is independently
developed by our company and has a domestic design patent; 8.The
gears and racks are all milled with oblique teeth, subjected to six
rounds of vacuum quenching and six rounds of high-precision
grinding, achieving a hardness of 62°. High hardness and precision
drive the machine to stretch and drive;9. There are two operating methods: manual and automatic; 10.Unique
valve position design, each part of the blowing valve action valve
adopts well-known domestic brands or imported foreign brands, with
safe and reliable quality and clear air circuit at a glance; 11.
The production process is fully automated, with advantages such as
low investment, high efficiency, easy operation, simple
maintenance, and safety; 12.The cooling system achieves ideal cooling effect; 13. Easy installation and startup; 14. Bottle scrapping rate less than 0.2%.
