Armoured Cable with XLPE Insulation and PVC Sheath in
Black/Grey/White

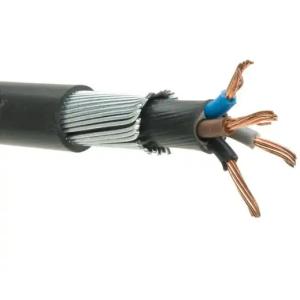

Product Description:
XLPE PVC Armoured Cable is a kind of armoured cable which is mainly
used for data transmission and electrical power distribution. It is
composed of two main parts, an insulated core and an outer steel
armour. The insulated core is made of XLPE and PVC materials, and
the outer steel armour is made of steel wire or tape. This armoured
cable provides superior protection from mechanical and
environmental hazards, making it suitable for use in extreme
conditions. It offers excellent mechanical protection, outstanding
impermeability, and superior fire resistance. It also has a minimum
bending radius of 6X overall diameter.
XLPE PVC Armoured Cable is available in various colors, including
black, grey and white. It is also available with copper or aluminum
conductors, and is highly resistant to corrosion and abrasion. This
cable is durable, stable and easy to install. It can also be used
in a wide range of applications, including data transmission, power
distribution, railway, and mining. In addition, it is also
environmentally friendly, with low-smoke, halogen-free, and
flame-retardant properties.
XLPE PVC Armoured Cable is the perfect choice for any application
which requires superior protection from mechanical and
environmental hazards. It is reliable, safe, and cost-effective,
making it an ideal choice for many applications. It is sure to
provide reliable data transmission and electrical power
distribution for a long time.
Features:
- Product Name: XLPE PVC Armoured Cable
- Application: Indoor/Outdoor
- Type: XLPE PVC Armoured Cable with Polyvinyl Chloride and XLPE
Insulation
- Cable Length: Up To 1000m
- Certification: CE/ISO/UL/ROHS
Applications:
XLPE PVC Armoured Cable is a type of armoured cable that is
designed for both indoor and outdoor applications. It is
constructed with a Polyvinyl Chloride (PVC) sheathing and an XLPE
insulation, offering protection against mechanical damage and water
ingress. The cable also has a minimum bending radius of 6 times the
overall diameter and a voltage rating of 0.6/1kV. It is designed
for use with 1-4 cores and can carry currents up to 1000A.
This type of armoured cable is ideal for a variety of applications,
from industrial to residential, and can meet the needs of even the
most demanding environments. Its robust construction and low
maintenance requirements make it a great choice for any project
that requires reliable power and enduring performance.
When you need an armoured cable that will stand up to the rigours
of the environment, look no further than XLPE PVC Armoured Cable.
It is designed for maximum safety and reliability, and is sure to
meet all your power needs.
Technical Parameters:
| Property | Value |
|---|
| Certification | CE/ISO/UL/ROHS |
| Application | Indoor/Outdoor |
| Voltage Rating | 0.6/1kV |
| Current Rating | Up To 1000A |
| Minimum Bending Radius | 6 X Overall Diameter |
| Cable Length | Up To 1000m |
| Type | XLPE PVC Armoured Cable |
| Color | Black/Grey/White |
| Insulation Material | XLPE |
| Core Size | 1-4 Cores |
Customization:
We offer Armoured Cable with XLPE and PVC and PVC and XLPE Armoured Cable with 0.6/1kV Voltage Rating, 70℃/90℃ Temperature Rating,
CE/ISO/UL/ROHS Certification, Copper/Aluminum Conductor Material.
Support and Services:
XLPE PVC Armoured Cable Technical Support and Services
Installation and Maintenance
We provide installation and maintenance services for our XLPE PVC
Armoured Cable products. Our experienced technicians can help you
install your cables correctly and safely. We also offer preventive
maintenance services to help ensure the long-term health of your
cables.
Troubleshooting and Repair
If your XLPE PVC Armoured Cable products are not functioning
properly, we can provide troubleshooting and repair services. Our
experienced technicians can identify and fix any issues quickly and
efficiently.
Customization and Modification
We also offer customization and modification services for our XLPE
PVC Armoured Cable products. Our technicians can customize or
modify your cables to meet your specific requirements.

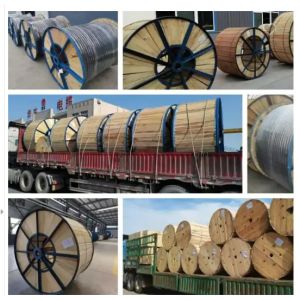

Packing and Shipping:
PVC XLPE Armoured Cable Packaging and Shipping:
The PVC XLPE armoured cable is usually packed with wooden drums,
wooden boxes, or plastic spools. These packaging materials are
strong enough to withstand rough handling during transportation.
The cables are normally shipped by sea, train, or truck. The
shipping route should be decided based on the customer’s
requirements. The cables should be stored in a cool, dry, and
ventilated environment.
FAQ:
Q1: What is XLPE PVC Armoured Cable?
A1: XLPE PVC Armoured Cable is a type of electrical cable composed
of cross-linked polyethylene (XLPE) insulation, PVC sheath, and a
steel armoured layer.
Q2: What are the characteristics of XLPE PVC Armoured Cable?
A2: XLPE PVC Armoured Cable has excellent electrical properties,
high mechanical strength, low smoke and toxicity, and excellent
flame resistance.
Q3: What are the applications of XLPE PVC Armoured Cable?
A3: XLPE PVC Armoured Cable is commonly used in industrial and
mining applications, such as in steel mills, power plants, and
other hazardous locations.
Q4: What are the advantages of XLPE PVC Armoured Cable?
A4: XLPE PVC Armoured Cable has excellent mechanical and electrical
properties, a wide range of temperature and voltage ratings, and is
suitable for use in hazardous locations.
Q5: What is the maximum voltage rating of XLPE PVC Armoured Cable?
A5: The maximum voltage rating of XLPE PVC Armoured Cable is
1.25kV.
