High End Standard Variable Frequency Inverters VFD580 Series
VEIKONG company introduction
VEIKONG was established in 2014, with a focus on the research and
development, as well as overseas sales of frequency converters. Our
products are designed to meet the needs of a wide range of
applications and scenarios.
We believe that innovation is essential in this industry and we are
proud to be at the forefront of technology. We have a team of
experienced engineers who are constantly working to improve our
products and to develop new solutions for our customers.
Our frequency converters are designed to be efficient and reliable,
and we use only the highest quality materials in their production.
We understand the importance of sustainability, and our products
are designed with energy efficiency in mind.
In addition to our commitment to innovation and sustainable
production, we are also dedicated to providing excellent customer
service. We have a team of knowledgeable sales representatives who
can help our customers find the best products for their needs, and
our technical support team is always available to help with any
issues or questions.
We are proud to be a global company, with customers in many
different countries and regions. Our goal is to continue to be a
leader in the frequency converter industry, providing innovative
and sustainable solutions to meet the needs of our customers.
Veikong High End Standard VFD580 Series New Model With Brand New
Outlook
1. Veikong high end VFD580 series product features
1) Compatible for both IM and PMSM, support speed, torque and
position serve.
2) Excellent SVC algorithm, high precision low frequency torque.
3) Support European standard STO function.
4) Plug-in terminals, more user friendly.
5) Standard motor temperature sensor interface, support PT100,
PT1000, KTY84.
2. VFD580 technical specification
| Item | Specification |
| Operation mode | Speed control, torque control (SVC and VC), position servo |
| Frequency control range | 0.00～600.00Hz(standard) 0.0～1000.0Hz(High frequency) |
| Input frequency resolution | Digital input: 0.01Hz or 0.01% Analog input: 0.025% of maximum
frequency |
| Torque control accuracy | SVC:5Hz within 8%,5Hz above 5% VC:3.0% |
| Position control | The position command supports internal position, pulse position
input, CANopen position command, EtherCAT position command (MT586).
Support position fully closed loop mod |
| Special function | Built-in delay unit, comparison unit and logic unit, etc., two
groups of motor parameter switching, software switching output
phase sequence, spindle orientation, online identification of motor
parameters |

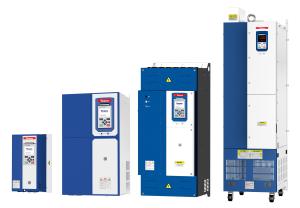

3. VFD580 series product pic and inner board
3. New product introduction
The VFD580 is a high-end variable frequency drive. The product
adopts the leading design concept, mainly for occasions with high
requirements for the comprehensive performance of the product.
Compared to traditional frequency converters, VFD580 has the
following features:
1. Drive three-phase AC asynchronous motor and three-phase AC
permanent magnet synchronous motor, and supports speed, torque and
position servo control.
2. Excellent SVC algorithms for asynchronous and synchronous
motors, enable high-precision motor speed and torque control even
without encoder feedback.
3. 15kW and above are equipped with a built-in DC reactor as
standard.
4. The built-in brake unit (45kW~90kW optional) is equipped as
standard within 37kW, and the brake circuit short circuit detection
function is equipped.
5. All weak current circuit terminals adopt plug-in terminals,
humanized identification, convenient wiring and maintenance.
6. An incremental encoder interface with Z input is standard,
eliminating the need to purchase a separate PG card in common
closed-loop speed applications.
7. Standard motor temperature sensor interface, support PT100,
PT1000, KTY84, no need for optional temperature detection card.
8. The whole series is equipped with buffer relay (contactor)
abnormal protection circuit, which can effectively prevent
accidents such as fire caused by component damage.
