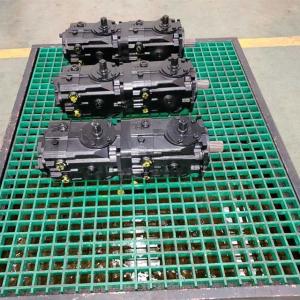

42Mpa high pressure serial pump customization
Tandem hydraulic pumps basic information:
"Experience superior power with our custom 42Mpa High-Pressure
Tandem Pumps. These pumps are designed to handle high-pressure
operations, providing reliable and efficient hydraulic power when
it matters most. Crafted with top-tier technology and materials,
our 42Mpa High-Pressure Tandem Pumps offer unrivaled durability,
ensuring they perform under the most demanding conditions. For
applications requiring high-pressure hydraulic solutions, our
custom 42Mpa High-Pressure Tandem Pumps are the perfect choice to
optimize your operations."
Tandem hydraulic pumps main features:
Variable displacement axial piston pumps
Swash plate structure design
Closed circuit hydraulic system applications
Wide range of displacement
CW or CCW, left or right rotation direction
Compact structure
High efficiency, high pressure
Multiple control modes
Cutom manufacturing and design
Tandem hydraulic pumps technical specification:
| HPV hydraulic pump and HMF hydraulic motor series |
| Displacement | Max displacement | ml/r | 110+110 |
| Speed | Max continuous working speed
(Full load condition) | r/min | 2900 |
| Rated speed | r/min | 2500 |
| Min continuous working speed | r/min | 500 |
| Pressure | Rated working pressure | Mpa | 35 |
| Max working pressure (transient) | Mpa | 42 |
| Continuous working pressure | Mpa | 30 |
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
| Torque | Continuous output torque
(Under continuous working pressure) | Nm | 535.3 |
| Max output torque | Nm | 749 |
| Power | Continuous output power | KW | 149 |
| Max power | KW | 173 |
| Temperature | Allowable shell temperature | ℃ | 80 |
| Max working temperature of oil tank | ℃ | 70 |
| weight | HPV series hydraulic pump hydraulic oil drain | kg | 164 |
Hydraulic usage of tandem hydraulic pumps:
Tandem hydraulic pumps are generally used in hydraulic transmission
system, especially widely used in high-power hydraulic transmission
system, such as agricultural machinery equipment, construction machinery, coal mining industry, oil exploration, aerospace industry and
shipbuilding industry.
Hydraulic tandem pump notices
Operator Training: Operators should be adequately trained to handle
and operate the hydraulic gear pump. This includes understanding
all safety procedures and regulations.
Regular Inspections: Before each use, perform a thorough inspection
of the hydraulic pump system to check for any signs of wear, leaks,
or other potential issues.
Hydraulic Oil Maintenance: Regularly check the level and quality of
the hydraulic oil. If the oil is contaminated or degraded, it
should be replaced immediately.
Overheating Prevention: Prolonged operation of the pump can lead to
overheating. Regularly monitor the temperature of the hydraulic
system and take cooling measures when necessary.
Correct Operation: Always operate the hydraulic gear pump in
accordance with the manufacturer's instructions. Incorrect
operation can lead to system malfunctions, potentially resulting in
equipment damage or personal injury.
Proper Storage: When not in use, store the hydraulic pump in a dry,
clean, and dust-free environment to prevent rust and contamination.
Professional Maintenance: If there's a decrease in system
performance or a malfunction, stop using it immediately and contact
a professional technician for inspection and repair. Don't attempt
to fix the problem on your own, as it could lead to further
equipment damage.
Highland company service for tandem hydrauilc pumps:
Quality service
One to one service, can provide design and installation solutions;
Online service for quick response and consultation;
Solve difficult after-sales problems;
Lightning supply
Regular single product supply for immediate delivery, batch can be
quickly shipped according to customer demand;
Commitment to warranty tandem hydraulic pump within one year;
Provide personalized and customized services according to customer
needs;
Hydraulic oil notice of tandem hydraulic pumps:
Understanding the Operating Parameters: Tandem Hydraulic Pumps are
complex devices that offer multiple flow rates and pressures.
Before using, it's crucial to understand the operating parameters
of each pump within the tandem setup. Operating beyond these
specifications can result in decreased efficiency, increased wear,
and potential pump failure.
