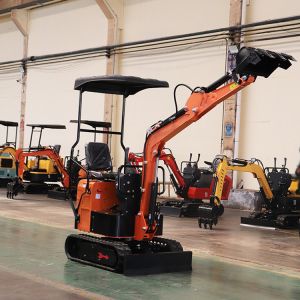

.SDJG-12 diesel engine excavator 8.2KW with KOOP 192/Changchai 192
single cylinder
air-cooling engine, Machine weight: 1100kg, 0.025 cbm bucket, Max.
digging deapth:1600mm,
· Optional accessories: Auger, Wood Grab, Roof, Ripper, Rake, 200mm
Narrow Bucket, 380mm
Standard Bucket, 500mm Leveling Bucket
· Beautiful appearance,high configuration,superior performance,low
fuel consumption,wide operating
range.
· Multipurpose: losingsoil of vegetable greenhouse,campus greening
of municipal departments,digging
the hole for tree planting of Fruit-land Nurseries concrete
pavement crushing,sand-gravel material mixing,
construction work in the narrow place etc...
· It can reduce maintenance and operating costs liberate the
workforce. Improve the mechanization, Iow
investment,high return.
| PARAMETERS |
| Model | SDJG-12 |
| Operating Weight | 1100kg |
| Digging bucket capacity | 0.025cbm |
| Bucket width | 340mm |
| Engine | Changchai 192/KOOP 192 |
| Rated power | 8.2 kw |
| Travel speed | 1.5km/h |
| MAIN DEMENSIONS |
| Overall dimension( LxWxH) | 2300*930*2050mm |
| Total length of track | 1400mm |
| Platform back turning radius | 1150mm |
| Chassis width | 930mm |
| Track width | 180 mm |
| OPERATING RANGE |
| Max. Digging depth | 1600 mm |
| Max. Digging height | 2550 mm |
| Max. Digging radius on ground | 2300 mm |
| Min. Rotation radius | 1150 mm |
Product details:
Standard crushing pipe, can be equipped with a variety
of crushing hammer, soil reducer, wood grabber, auger
and other different accessories, a multi-purpose machine;
Iron crawler and rubber crawler can be interchangeable at
any time, to adapt to various conditions of construction,
the use of deflection arm, can be easily deflected work wall
foot.
Can provide a variety of accessories, can adapt to the needs
of different countries and customers
Products are widely used in indoor demolition, orchard
planting, municipal engineering, greenhouses, heaven
and earth reclamation, nursery trench fertilization,
pipeline, basement renovation, underground operations,
etc
Company Introduction:
Jianggong machinery is a research and development, production and
sales in one of the
industrial and trade enterprises, the main production: construction
machinery products,
excavator equipment, road equipment, industrial handling equipment,
agricultural equipment
and other products.
“Jianggong” brand series of small excavators for 5 consecutive
years in the export market to
maintain the forefront. The main overseas markets are distributed
in Europe, North America,
Southeast Asia, South America, etc. So far, the products have been
exported to 177 countries
and regions around the world.
