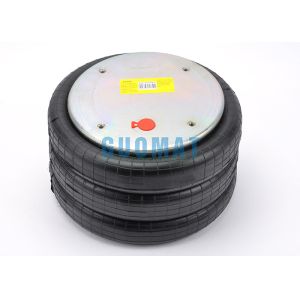

381mm Height Triple Convoluted Air Spring For Slurry Starch Vibrating Screen GUOMAT Pneumatic Bellows Actuators

GUOMAT Pneumatic Bellows Actuators 381mm Height Triple Convoluted Air Spring For Slurry Starch Vibrating Screen

Product Description

Technical Data

Cover Plate Diameter: 289mm

Threaded Hole: 3/8-16UNC

Number of Threaded Hole on the Top Cover Plate:4 Pieces

Number of Threaded Hole on the Bottom Cover Plate:4 Pieces

Center Distance Between Threaded Holes: 159mm

Air Inlet: 3/4NPT

Height: 381mm

Rubber Bellow Diameter: 353mm

The Role of Air Spring in Slurry Starch Vibrating Screen
The air spring in a slurry starch vibrating screen serves as a suspension system for the screen frame. It helps to minimize the effect of vibrations generated by the exciter on the surrounding environment and provides a stable foundation for the frame, allowing it to move in a controlled manner. The air spring also helps to isolate the screen frame from external forces, resulting in improved accuracy and efficiency of the screening process. In summary, the air spring plays a crucial role in maintaining the stability and accuracy of the slurry starch vibrating screen.

GUOMAT 3B7994 Refer Number: Firestone W01-358-7994,Contitech FT330-29 546,Contitech 64572,Goodyear 3B12-328

GUOMAT 3B7995 Refer Number: Firestone W01-358-7995/38,Contitech FT330-29 547,Goodyear 3B12-329

GUOMAT 3B7996 Refer Number: Firestone W01-358-7996/38,Contitech FT330-29 520,Goodyear 3B12-335

GUOMAT 3B8006 Refer Number: Firestone W01-358-8006,Contitech FT330-29 430,Goodyear 3B12-304

GUOMAT 3B8008 Refer Number: Firestone W01-358-8008,Contitech FT330-29 431,Goodyear 3B12-300

GUOMAT 3B8010 Refer Number: Firestone W01-358-8010,Contitech FT330-29 432,Goodyear 3B12-301

GUOMAT 3B8016 Refer Number: Firestone W01-358-8016,Contitech FT330-29 433

GUOMAT 3B8025 Refer Number: Firestone W01-358-8025,Contitech FT330-29 469,Goodyear 3B12-300

GUOMAT 3B8027 Refer Number: Firestone W01-358-8027/38,Contitech FT330-29 466,Goodyear 3B12-310

GUOMAT 3B8030 Refer Number: Firestone W01-358-8030/38,Contitech FT330-29 498,Goodyear 3B12-304

GUOMAT 3B5310 Refer Number: Contitech FT 412-323,Goodyear C2ECH,Dunlop Pneuride 12X3

GUOMAT 3B5330 Refer Number: Contitech FT210-32,Dunlop SsP1539(10X3)

GUOMAT 3B7808 Refer Number: Firestone W01-358-7808/313,Contitech FT330-22 364,Goodyear 2B12-313

GUOMAT Industrial Air Spring Real Pictures

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
