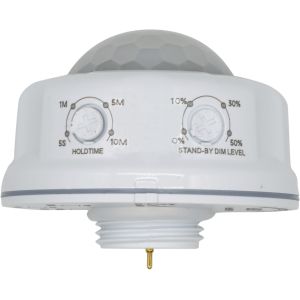

The 12VDC Highbay PIR Sensor HD09VR PH/PHB with Photocell and Daylight Harvesting

Description:

Rotator & Remote control, app control for BLE version.

12VDC Input, 0-10V Dimming, with Daylight Harvesting and Photocell Function.

ONE for ALL Installations Parterning With Different Receptacles & Brackets.

Features:

Infrared Wavelength:5-14um

Installation Height:12m/39ft Max

Detection Angle:Fresnel Lens ≤120° Fersnel Lens

Warranty:3 Years

Performance Parameters:

Wiring diagram:

Receptacles:

Attention:

1. Suitable for indoor application, half/completely outdoor environment conditions might trigger the sensor.

2. Suitable for ceiling mount installation, adjust sensitivity properly if it's installed on side-wall because it gets more sensitive.

3. PIR sensor can't be placed inside any material, fresnel lens must completely exposed in air.

4. Fresnel lens of the PIR sensor must be lower than light fixture.

5. Not suitable environment if there's sudden changed temperature of airflow for PIR sensor.

6. Not suitable environment if there's shelves blocking between the sensor and presence area.

7. Detection area options may NOT working obviously because it works depends on fresnel lens, it's physically defined.

8. Detection distance performance works better when moving parallelly than moving towards to the sensor.

9. Daylight testing delivered in bright day without shadow or specially designed lampshade or lens.

10. Dimming performance differs when connected to different drivers; If the driver can't completely turn OFF, sensor can't either.

11. Input power voltage must be stable with float less than 10%.

12. The first time powered ON sensor, light will be ON 100% for about 45S then dims to standby level or OFF.

13. Distance detection is delivered by testing person about 165cm in open area as reference, the result differs by size and speed of moving objects, mountng height and real-life situation.
