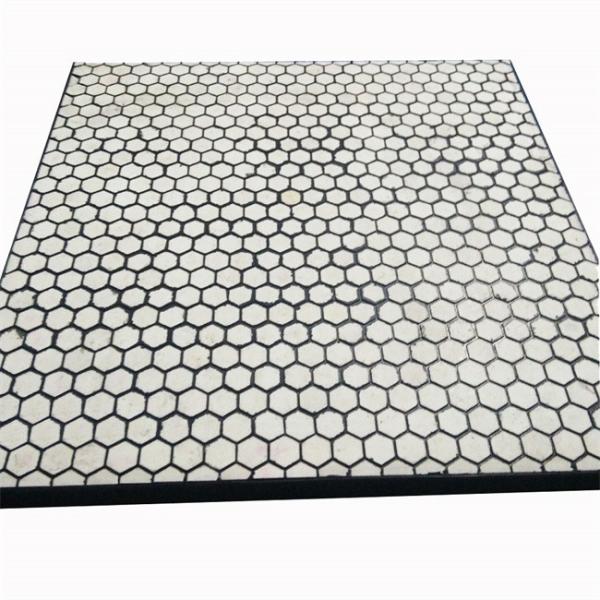

Excellent Bonding Rubber Ceramic Composite Wear Liner For Gold
Slurry
Alumina Ceramic Liner Description:
Alumina ceramic liner is a type of protective lining used in
industrial applications to protect equipment and surfaces from
abrasive or corrosive materials. The liner is typically made of
high-quality ceramics, such as alumina, zirconia, or silicon
carbide, that offer excellent resistance to wear, impact, and high
temperatures.
Alumina Ceramic Liner installed method:
| Bolt On | Ceramic rubber liner with bolts, countersunk, etc |
| Bond on | Ceramic rubber liner with cn bonding layer |
| Magnetic | Ceramic rubber liner with magnets |
We also use brand adhevise to ensure the bonding between ceramic
and rubber.
Alumina Ceramic Liner selection chart:
Item | Description | Unit | Result |
| Alumina Ceramics |
| 1 | Alumina(Al2O3) | % | 92 / 95 |
| 2 | Desity | g/cm3 | 3.64 |
| 3 | Water Absorption | % | ≤0.01 |
| 4 | Hardness | Mohs | 9 |
| Rubber |
| 1 | Material | | NR, BR |
| 2 | Gravity | Tensile Strength | 1.15 |
| 3 | Tensile Strength | MPa | 16 min |
| 4 | Elongation | % | 400 min |
| 5 | Abrasion Loss | mm3 | ≤80 |
| 6 | Aging coefficient (70ºCx48h) | | 0.87 |
| Peeling Strength |
| 1 | Peeling strength between rubber & ceramic | KN/m | ≥12 |
| 2 | Peeling strength between rubber & steel | KN/m | ≥12 |
Alumina Ceramic Liner Features:
1. Rubber ceramic wear liner is a combination of high alumina
ceramic element, resilient rubber and steel backing plate.
2. Alumina ceramics exhibit excellent abrasion resistance, much
longer than steel wear plate.
3. Resilient rubber matrix helps absorbing impact energy.
4. Steel plate, studs, nuts and washers for easy fixing.
Various rubber ceramic liners for your options.
Alumina Ceramic Liner Application:
Alumina ceramic liner can be customized to fit almost any shape or
size of equipment, providing effective protection against wear and
extending the service life of the equipment. It is commonly used in
industries such as mining, cement, power generation, steel, and
chemical processing.
Alumina Ceramic Liner Package:
Standard export packing, plywood pallet, no wood, no need
fumigation
Pallet size: 1000*1000*620mm, Pallet weight: 1.2 tons
Pallet quantity for each 20GP container: 20~24 pallets
Why choose us:
• Jiaozuo Debon is a professional conveyor accessories manufacturer
since 1996.
• Over 22-year experience of producing and developing, Jiaozuo
Debon have become top 10 belt conveyor accessories manufacturer in China
• Export since 2008, export to over 50 countries
• Strict quality control, mature production line ensure quality and
consistency.

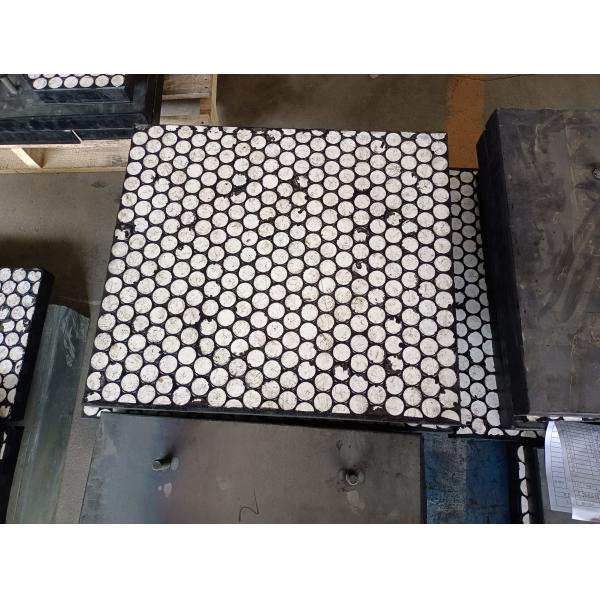

Ceramic shapes can be cylinder, hexagonal, square, rectangular,
etc.
