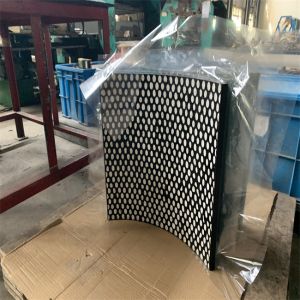

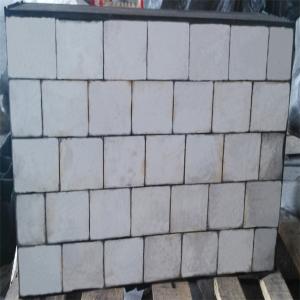

Wear Ceramic Chute Liners Ball Mill Ceramic Tile Liners
Polyurethane Ceramic Lining
Alumina Ceamic Liner Description:
Alumina ceramic liner is a type of wear-resistant lining material
used to protect industrial equipment from abrasion, impact, and
corrosion. It is made of high-density alumina ceramic tiles or
panels that are bonded to a substrate such as steel or rubber.
The alumina ceramic tiles are arranged in a specific pattern to
provide maximum protection against wear and impact. They are known
for their exceptional hardness and wear resistance, which make them
ideal for use in harsh industrial environments.
Alumina Ceramic Liner Specification:
Item | Description | Unit | Result |
| Alumina Ceramics |
| 1 | Alumina(Al2O3) | % | 92 / 95 |
| 2 | Desity | g/cm3 | 3.64 |
| 3 | Water Absorption | % | ≤0.01 |
| 4 | Hardness | Mohs | 9 |
| Rubber |
| 1 | Material | | NR, BR |
| 2 | Gravity | Tensile Strength | 1.15 |
| 3 | Tensile Strength | MPa | 16 min |
| 4 | Elongation | % | 400 min |
| 5 | Abrasion Loss | mm3 | ≤80 |
| 6 | Aging coefficient (70ºCx48h) | | 0.87 |
| Peeling Strength |
| 1 | Peeling strength between rubber & ceramic | KN/m | ≥12 |
| 2 | Peeling strength between rubber & steel | KN/m | ≥12
|
Alumina Ceramic Liner Features:
High wear and abrasion resistance
Long wear life, low maintenance and downtime
Significant noise reduction
Available in awide variety of shapes and sizes
Corrosion resistant
Alumina Ceramic Liner Application:
Alumina ceramic wear liners are commonly used in industries such as
mining, cement production, power generation, and steel
manufacturing, where equipment is subjected to extreme conditions
and heavy wear.
Alumina Ceramic Liner Package:
Standard export packing, plywood pallet, no wood, no need
fumigation
Pallet size: 1000*1000*620mm, Pallet weight: 1.2 tons
Pallet quantity for each 20GP container: 20~24 pallets
Why choose us:
1. Rich experience on production process of alumina ceramic liner
2. Strict quality control on ralumina ceramic liner
3. Good delivery time
4. Custom shape alumina ceramic liner are available.
5. Excellent bonding between rubber and ceramic
We are a factory dedicated to producing ceramic wear liner and have
been improving the properties of ceramics. We use high quality
rubber to offer better impact resistance and high quality rubber
can also help holding the ceramic tiles, no ceramic tiles falling.
