Ceramic Wear Tiles ZTA Toughened Zirconia Ceramic Products For
Industry

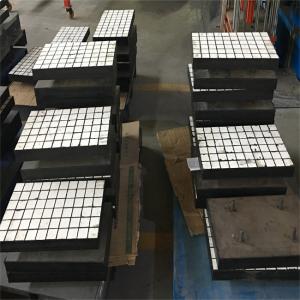

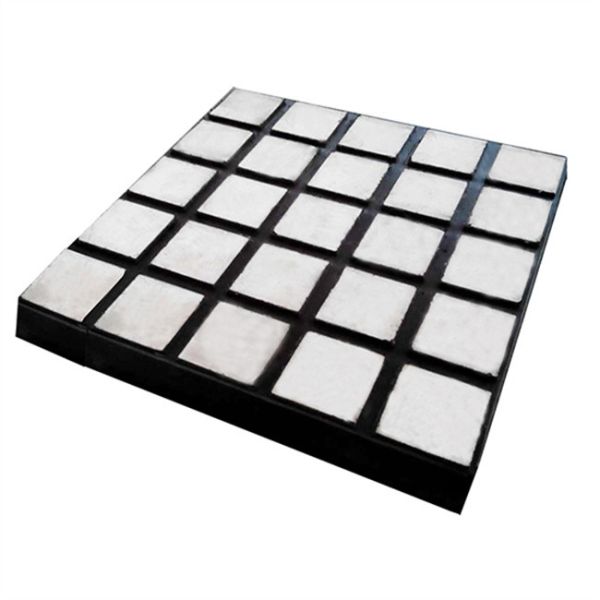

Ceramic Wear Tiles Description:
ZTA (zirconia toughened alumina) ceramic tiles are high-performance
ceramic materials that combine the toughness of zirconia with the
hardness and wear resistance of alumina. This results in a material
that is highly resistant to wear, corrosion, and thermal shock,
making it suitable for a wide range of industrial and engineering
applications.
ZTA ceramic tiles are commonly used as wear-resistant liners in
equipment subjected to severe wear and abrasion, such as mining
chutes, hoppers, and pipes. They can also be used in manufacturing
processes such as cutting, grinding, and polishing due to their
excellent resistance to wear and chemical attack. Additionally, ZTA
ceramic tiles are commonly used in ballistic protection systems due
to their high strength and toughness.
Ceramic Wear Tiles Specification:
| Category | 92 Series | 95 Series | ZTA | ZrO2 |
| Al2O3 | ≥92% | ≥95% | ≥74% | / |
| ZrO2+Ye2O3 | / | / | ≥23.5% | ≥95% |
| Density | ≥3.60g/cm3 | ≥3.65g/cm3 | ≥4.15g/cm3 | ≥6g/cm3 |
| Mohs hardness | 9 | 9 | 9 | 9 |
| Water absorption% | ≤0.02 | ≤0.02 | ≤0.01 | 0 |
| Bending Strength MPa | 255 | 275 | 500 | 900 |
| Compression strength MPa | ≥850 | ≥900 | 1400 | 2200 |
| Fracture Toughness MPam 1/2 | 3.65 | 3.75 | 5.5 | 7 |
| Wear Volume | ≤0.55cm3 | ≤0.50cm3 | ≤0.15cm3 | ≤0.10cm3 |
Ceramic Wear Tiles Features:
ZTA (zirconia toughened alumina) ceramic tiles are high-performance
materials that offer several features and benefits, including:
- Wear resistance: ZTA ceramic tiles have excellent wear resistance
due to their high hardness and toughness, making them ideal for use
in wear-resistant applications.
- Corrosion resistance: ZTA ceramic tiles are highly resistant to
chemical corrosion, making them suitable for use in harsh chemical
environments.
- Thermal shock resistance: ZTA ceramic tiles can withstand rapid
changes in temperature without cracking or breaking, making them
suitable for use in high-temperature applications.
- High strength and toughness: ZTA ceramic tiles have high strength
and toughness, making them resistant to breakage and deformation
under mechanical stress.
- Electrical properties: ZTA ceramic materials have good electrical
insulation properties, making them suitable for use in electronic
components such as capacitors, sensors, and actuators.
Ceramic Wear Tiles Application:
Wear-resistant liners;
Manufacturing processing;
Ballistic protection;
Medical implants;
erospace components;
Electronic components
Ceramic Wear Tiles Package:
Standard export packing, plywood pallet, no wood, no need
fumigation
Pallet size: 1000*1000*620mm, Pallet weight: 1.2 tons
Pallet quantity for each 20GP container: 20~24 pallets
Why choose us:
1. We are a factory producing ceramic wear liners.
2. Proven quality
3. Standard and custom-made wear liners to fit your facility.
4. Excellent bonding between ceramic and rubber.
5. Extensive experience ensures high quality and consistency.
6. Custom ceramic rubber wear liners are available as per drawing
and sample.
7. Strict QC/QA system, testing report will be issued to each
purchase order.
We are a factory dedicated to producing ceramic wear liner and have
been improving the properties of ceramics. We use high quality
rubber to offer better impact resistance and high quality rubber
can also help holding the ceramic tiles, no ceramic tiles falling.
