    Flange Connection Air Suspension Spring 3H480312 Triple Convoluted Rubber Air Bellows

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 3H480312
    Certification : ISO/TS16949:2009
    Price : $79.9-89.9/pc
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    Flange Connection Air Suspension Spring 3H480312 Triple Convoluted Rubber Air Bellows

    Flange Connection Air Suspension Spring 3H480312 Triple Convoluted Rubber Air Bellows Suppliers

    Product Description

    Manufacturer: GUOMAT

    Manufacturer Model: 3H480312

    Nominal Diameter: Ø400mm

    Minimum Compression Height: 122mm

    Maximum Height: 360mm

    The Stroke: 238mm

    Natural Height: 312mm

    Cover Plate Diameter: Ø476mm

    Rubber Bellows Max. Diameter: Ø510mm (At 0.7Mpa)

    Number of Screw: 20 pieces

    Screw/Blind Nut: M10

    Center Distance Between Screws: Ø438mm

    Payment: L/C,T/T,West Union,Paypal

    Shipment: By Air;By Sea;By Express(DHL,FedEx,UPS, EMS,TNT)

    Delivery Time: About 3-7 working days after we received your payment.According to the purchase quantity.


    The Role of Flange Connection Air Spring
    Flange connection air springs are used in various industrial applications. They play a significant role in valves and piping systems. The flange connection provides a secure connection between the air spring and the valve or piping system. This ensures that the valve or piping system operates optimally and reduces the risk of leaks and other issues. Flange connection air springs can also act as vibration isolators, which helps in reducing the vibrations generated by machinery. This, in turn, improves the overall efficiency and reliability of the machinery.


    Our Advantage

    1.We focus on the production of air spring has been 15 years which is Chinese the largest manufacturer of air springs.
    2. Our products have a one-year warranty. If you have any questions during use, you can contact us at any time.
    3. We have many models in stock, and the delivery time is fast.
    4. A variety of payment methods as you choose
    5. There are many types of transportation methods, and we can choose the appropriate transportation method for you according to your needs.


    Firestone Industrial Air Spring

    Firestone StyleFirestone No.Firestone StyleFirestone No.
    Style 119W01-358-7478Style 121W01-358-7272
    Style 119W01-358-0119Style 126W01-358-7727
    Style 119W01-358-7477Style 126W01-358-7726
    Style 121W01-358-7197Style 126W01-358-1026
    Style 121W01-358-5135Style 138-1.5W01-358-7737
    Style 138.1.5W01-358-7734Style 138-1.5W01-358-0147
    Style 148-2W01-358-9601Style 148-1W01-358-1021
    Style 268W01-358-7025Style 268W01-358-7047
    Style 268W01-358-7035Style 268W01-358-0030
    Style 268W01-358-7030Style 268W01-358-0319
    Style 255-1.5W01-358-6955Style 255-1.5W01-358-6956
    Style 255-1.5W01-358-0048Style 255.1.5W01-358-6833
    Style 224W01-358-3400Style 224W01-358-3403
    Style 224W01-358-3407Style 26W01-358-7325

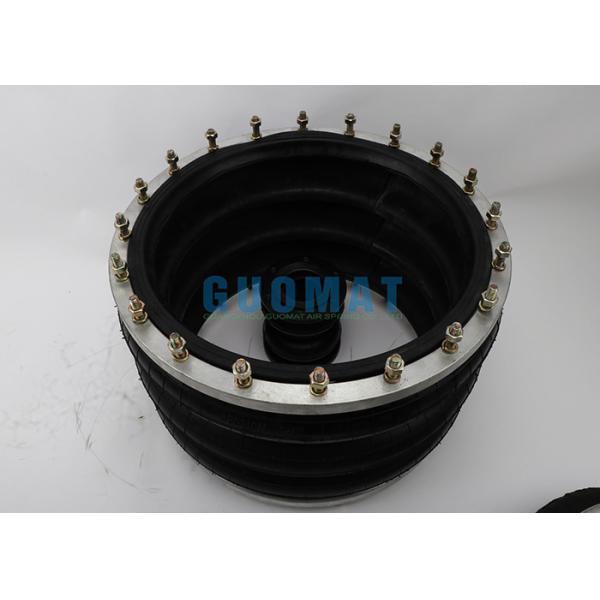

    3H480312 GUOMAT Industrial Flange Air Bag Real Pictures
