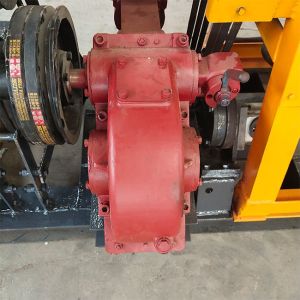

Diesel Engine 22HP Waterwell Drilling Rig Hydraulic Core Drilling Machine HZ-200Y

    Buy cheap Diesel Engine 22HP Waterwell Drilling Rig Hydraulic Core Drilling Machine HZ-200Y from wholesalers

    Buy cheap Diesel Engine 22HP Waterwell Drilling Rig Hydraulic Core Drilling Machine HZ-200Y from wholesalers
    • Buy cheap Diesel Engine 22HP Waterwell Drilling Rig Hydraulic Core Drilling Machine HZ-200Y from wholesalers
    • Buy cheap Diesel Engine 22HP Waterwell Drilling Rig Hydraulic Core Drilling Machine HZ-200Y from wholesalers
    • Buy cheap Diesel Engine 22HP Waterwell Drilling Rig Hydraulic Core Drilling Machine HZ-200Y from wholesalers
    • Buy cheap Diesel Engine 22HP Waterwell Drilling Rig Hydraulic Core Drilling Machine HZ-200Y from wholesalers
    • Buy cheap Diesel Engine 22HP Waterwell Drilling Rig Hydraulic Core Drilling Machine HZ-200Y from wholesalers

    Diesel Engine 22HP Waterwell Drilling Rig Hydraulic Core Drilling Machine HZ-200Y

    Ask Lasest Price
    Brand Name : Beijun
    Model Number : HZ-200Y
    Certification : CE,ISO
    Payment Terms : L/C, T/T
    Supply Ability : 1000 Set/Sets per Month
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    Diesel Engine 22HP Waterwell Drilling Rig Hydraulic Core Drilling Machine HZ-200Y

    HZ-200Y hydraulic core drilling rig


    1.Applications of HZ-200Y hydraulic core drilling rig


    Geological survey and exploration, road and high-rise building foundation exploration, and all kinds of concrete structure inspection holes, river embankments, subgrade grouting holes, drilling and direct grouting, civil water well and ground temperature central air conditioners.


    2.Features of HZ-200Y hydraulic core drilling rig


    adopts 53*59 hexagon drilling, which has high rigidity and strong delivery torque.

    the machine is equipped with taper clutch, with the charactristics of strong transmission troque, easy operation and free of maintenance.

    for the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the winch.

    vertical spindle are fixed by four groups of bearings to ensure that the core machine is rigid enough for gravel layer and other complex geological conditions.

    we are the first one to equip mud pump with the flow 160L/min in China so that it will save cost and also make the machine compct, moblie and light in weight.


    3.Technical parameters of HZ-200Y hydraulic core drilling rig


    HZ-200Y hydraulic core drilling rig
    Drilling depth200m
    Max open hole caliber300mm
    End hole caliber75mm
    Drill rod caliber60mm
    Drilling angle90°-75°
    Drill weight(without power)1100kg
    Triangle conveyer beltB950*4 B1700*3
    The main machine moving distance300mm
    PowerDiesel engine 22HP Electric motor 15kw
    Spindle
    Spindle speed64/128/287/557 r/min
    Spindle stroke450mm
    Hoist
    Max.lifting capacity2400kg
    Single line lifting speed0.41/ 0.82/1.64 m/s
    Wire rope caliber13mm
    Wire rope length35m
    Hug floodgate caliber260mm
    Hug floodgate belt width70mm
    Mud pump
    TypeHorizontal single-urn twin-action
    Displacement

    Diesel engine 170L/min

    Electric motor 150L/min

    Maximum pressure3Mpa
    Work pressure1.5Mpa
    Inlet pipe caliber40mm
    Outlet pipe caliber30mm
    Triangle conveyer beltB1728mm
    Mud pump
    TypeCBT—F—314
    Triangle conveyer beltB1100× 1
