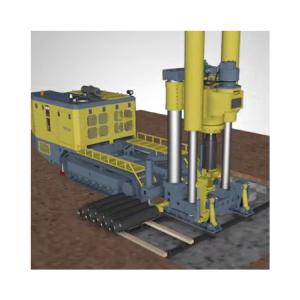

    Self Propelled Towed Mine Crawler Raise Borer Machine With Patented Technoloy

    Ask Lasest Price
    Brand Name : Beijun
    Model Number : CY-R80
    Certification : CE,ISO
    Price : USD 280000-300000 Set
    Payment Terms : L/C, T/T
    Supply Ability : 1000 Set/Sets per Month
    Delivery Time : 14 days
    • Product Details
    • Company Profile

    Self Propelled Towed Mine Crawler Raise Borer Machine With Patented Technoloy

    Function Characteristics


    FOUR-POSTER TOW-CYLINDER LOWER STRUCTURE

    The CYR series RBM adopted an international mainstreampillar structure. It

    features reliable operation, fast mounting and dismounting. convenient maintenance

    and small working space.


    TWO DRILLING MODES AND THREE OPERATION MODES

    The control system supports two drilling modes(high accuracy drilling mode and

    fast speed drilling mode) and three operation modes(manual operation, wireless

    operation and wired operation).The user can select drilling mode according to accuracy

    requirement and geological conditions and select operation mode according to

    operating position and the actual situation.

    FULL-MECHANIZED CONNECTING&BREAKING OUT DRILLPIPES SYSTEM

    By means of the automatic positioning technology and two hydraulic wrenches

    inserted dynamically the operation that operators connect and break out drill pipes can

    be accomplished without being directed.The system greatly reduces working strength

    and saves auxiliary working time.

    RCS INTELLIGENT CONTROL SYSTEM

    The CYR series RBM installs RCS intelligent control system with safety protection.

    automatic operation,fault diagnose.data storage. Internet communications,digital display

    and so on(see specification of RCS intelligent control system).


    Performance Parameter


    uniteCY-R80CY-R120CY-R 120D
    operationnominal raise diametermm200030003000
    maximum raise diametermm250035003500
    2nd raise diametermm350045004500
    maximum raise depthm400200400
    pilot hole°241280280
    drill angle from horizontalmm60~9060~9060~90
    propulsionfeed forcekN1017@35MPa1940@35MPa2528@35MPa
    lifting forcekN2425@35MPa1940@35MPa4310@35MPa
    feed distancemm1 45014551440
    rotationnomianl torquekN.m82168168
    peak torquekN.m94192192
    rotation speedr/min0~300~240~24
    powervolfageVstandard: 380 (optional: 660/1000/1 140)
    motor powerkW90132132
