    5 Ton new Wheel Loader 5 Ton ZL50GN LW500FN LW500KN Wheel Loader

    Ask Lasest Price
    Brand Name : CIVL
    Model Number : ZL50GN LW500FN LW500KN
    Certification : iso ccc
    Payment Terms : L/C, T/T
    Supply Ability : 200units/month
    Delivery Time : 20-30days
    Price : Negotiable
    • Product Details
    • Company Profile

    5 Ton new Wheel Loader 5 Ton ZL50GN LW500FN LW500KN Wheel Loader

    5 Ton New Wheel Loader 5 Ton ZL50GN LW500FN LW500KN Wheel Loader

    Description:

    In recent years, XCMG made numerous breakthroughs in loader technology development and continously make history in loader industry. Implementation of"service throughout full life cycle" brings about trouble-free lifetime experience! Marketing service network spread around the world covers extensive areas.


    Performance highlights:


    ZL50GNLW500KNLW500KN

    ZL50GN is the best seller of XCMG 5 tonnage wheel loader, easy maintenance, modestly priced, wide application.


    1. The diversified configurations and complete attachments comprehensively adapt to the construction needs in different regions and under different working conditions.

    2. The 160kN traction force and ≥3.78m high dumping capacity handle the severe conditions with ease.

    3. ≥7,500kg lifting capacity and 175kN breakout force handle all kinds of materials with ease.

    XCMG 5 ton wheel loader LW500FN,low price,suitable for light material.


    1. The diversified configurations and complete attachments.

    2. The 160kN traction force and ≥3.5m high dumping capacity handle the severe conditions with ease.


    LW500KN wheel loader is suitable for heavy loads under rock conditions and so on ; higher price than ZL series and FN series, high rate of return on investment.


    1.The working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity.

    2.The large rock bucket with capacity of 3M3 is improved in terms of the work efficiency and adaptation. The cutting blade and bucket edge are equipped with protection device, featuring excellent abrasion resistance and shock resistance.


    Specification:

    DescriptionUnitlw500fnzl50gnlw500kn
    Rated operating loadkg500050005000
    Bucket capacity2.5~4.52.5~4.52.7~4.5
    Machine weightkg169001750017200
    Dump clearance at maximum liftmm3150~35603100~37803150~3560
    Reach at maximum liftmm1100~11901100~12201100~1190
    Wheel basemm296033003300
    Treadmm225022502250
    Height of hinge at maximum lift heightmm411241124112
    Working height(fully lifted)mm551055105407
    Max.breakout forcekN170175170
    Hydraulic cycle time-raises≤6≤6S≤6.5 s
    Total hydraulic cycle times≤10.5≤11S≤11 s
    Min. turning radius over tyresmm595059255925 mm
    Articulation angle°353830 º
    Gradeability°283045 º
    Tyre size23.5-25-16PR23.5-25-16PR23.5-25-16PR
    Overall machine dimension L×W×Hmm7910×3016×35158225×3016×35158870*3000*3350
    ModelWD10G220E21SC110B220G2B1WD10G220E21
    Rated PowerkW162162162

    Photos:

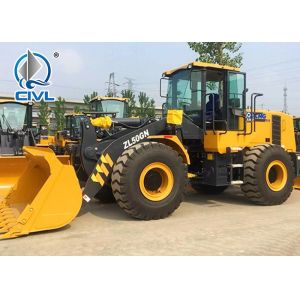

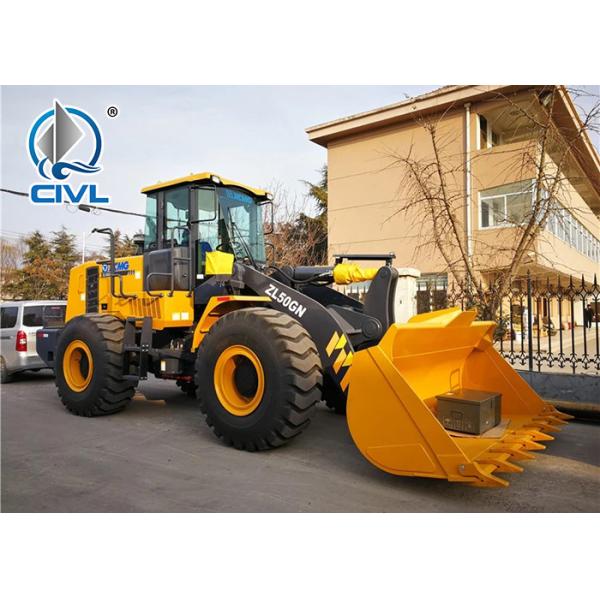

    ZL50GN

    LW500KN
