    Construction Waste Crushing Equipment Mobile Crushing Plant Contains Jaw Crusher

    Ask Lasest Price
    Brand Name : CIVL
    Model Number : CIVLwt96-120
    Certification : ISO
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 10 units/week
    Delivery Time : Within 30 days
    • Product Details
    • Company Profile

    Construction Waste Crushing Equipment Mobile Crushing Plant Contains Jaw Crusher

    Construction Waste Crushing Equipment / Mobile Crushing Plant Contains Jaw Crusher/Impact Crusher/Conveyor Belt


    Describtion:
    The mobile construction waste treatment station adopts a multi-stage combination mode,

    Contains jaw crusher, impact crusher, cone crusher, vibrating screening equipment conveyor belt, etc.


    There are two types of walking modes:

    crawler type and tire type, which can be selected according to the road surface that is often operated.
    After the construction waste is crushed by the mobile crushing station, the waste is sorted, eliminated and then crushed,

    most of which can be reused as renewable resources, such as scrap steel,

    scrap iron wire, scrap wire and various scrap steel accessories and other metals.

    After being concentrated and returned to the furnace, various specifications of steel can be reprocessed;

    waste bamboo wood can be used to make artificial wood;

    bricks, stones, concrete and other wastes can be pulverized and used instead of sand to be used for masonry mortar and plastering mortar

    It can also make building blocks, paving bricks, lattice bricks and other building materials products.


    Specification:

    Crawler Jaw Crusher Mobile Station

    ModelWT96WT106WT120
    Shipping Dimensionslength14200mm14900mm15200mm
    width2900mm3000mm3200mm
    high3470mm3600mm3700mm
    weight38t50t65t
    feeding machineHopper volume5m³5m³6m³
    loading height3900mm4100mm4300mm
    Feeder modelGZDT3895GZDT1145GZDT1245
    Unearthed belt conveyorDimensions (W×L)800×9000mm1000×10000mm1200×12000mm
    discharge height3100mm3200mm3400mm
    CrushermodelCJ96CJ106CJ120
    Inlet930×580mm1060×700mm1200×870mm
    Maximum feed size480mm560mm700mm
    main belt conveyorDimensions (W×L)800×9000mm1000×10000mm1200×12000mm
    discharge height3100mm3200mm3400mm
    Iron removermodelRCYQ-8RCYQ-10RCYQ-10
    Diesel enginespower96kw106kw132kw
    whole machinepower112.9kw141.4kw196.2kw

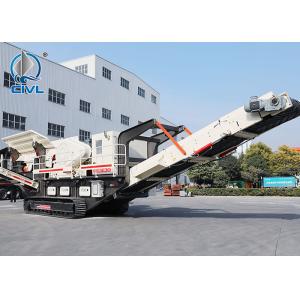

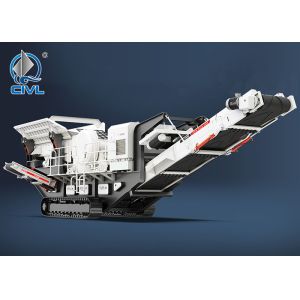

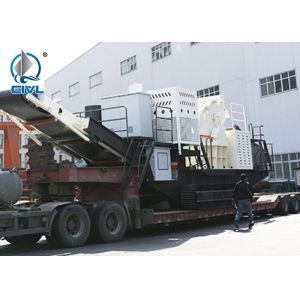

    Photos:


    Outstanding advantages:

    1. Flexible configuration

    Integrated complete set of units, flexible mobility, reduced material transportation costs, direct and effective operation, and strong adaptability

    2. Process simplification

    Change tertiary crushing to single-stage crushing, simplify the process flow

    3. High yield and fine particle size

    More than 80% of the crushed products have a particle size of less than 10mm, while the traditional construction waste treatment equipment can only reach 40%

    4. Long life of wear parts

    The wear-resistant parts have long service life, and the maintenance frequency is greatly reduced
