12,000L Water Truck With Sinotruk 4x2 Chassis ((With Front Spray
And Rear Spread) Sprinkler
7000L Sprinkler Water Truck
Description:
The sprinkler is also known as :t
he sprinkler, the multi-function sprinkler, the landscaping
sprinkler, the water tanker, and the water truck.
The sprinkler is suitable for all kinds of road washing, trees,
green belts, lawn greening, construction of roads, factories and
mines, and high-altitude buildings. It has the functions of water
spraying, dust pressure, high and low spraying, pesticide spraying,
guardrail flushing, etc. It also has functions such as water
transportation, drainage, and emergency fire fighting.
Specification:
| Chassis Performance | Total capacity : kg | 16000 |
| Curb weight :kg | 9250 |
| Rated load : kg | 6550 |
| wheel track front/rear : mm | 1930/1800 |
| Approach/departure angle: ° | 19/16 |
| Overall dimension LxWxH: mm | 8140*2500*3320 |
| Wheelbase: mm | 4700 |
| Max driving speed: km/h | 101 |
| Cabin | Width | 2500 |
| Passengers | 3 |
| WITH A/C | YES |
| Engine | Type | 6 cylinders,vertical in line,watercooling ,Turbocahrger |
| Displacement: L | 9760 |
| Fuel | Diesel |
| Rated power/roation : kW/rpm | 196/2200 |
| Tire | type | 1200R20 |
| No.s | 6+1 |
| Braking system | Drive brake | exhaust,air assistance |
| Auxiliary brake | Engine exhaust brake |
| Emergency and parking brake | hydraulic, drum |
| Water tank | Capacity | 12,000L |
| Dimension: mm(length*diameter) | ５870*1660 |

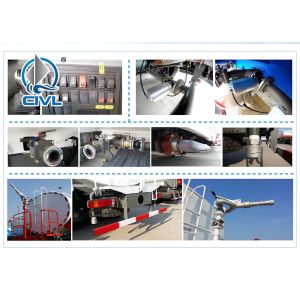

Photos:
Basic classification
1. Spray type,
2. Flush type,
3. Spray-wash type;
Greening sprinkler,
multi-function sprinkler,
truck-mounted sprinkler,
water truck sprinkler,
fire sprinkler.
3-8 cubic sprinkler
10-12 cubic meters sprinkler
13-15 cubic meters sprinkler
18-20 cubic meters sprinkler
More than 20 cubic meters of sprinkler
