Specifications:
| Item | unit | specification |
| Name | | HOWO |
| Classis model | | ZZ5257M4647 |
| Actual volume | M3 | 20 |
| Total weight | kg | 25000 |
| rated loading weight | | 14370 |
| Curb weight | | 10500 |
| truck size | mm | 9920×2490×3140 |
| wheelbase | | 4550+1350 |
| tread | Front wheel | | 1939 |
| | Back wheel | | 1958 |
| approach angle/departure angle | ° | 20.5/13 |
| tire qity | | 11 pcs |
| air displacement /power | L/ps | 9726 / 266 |
| Max. speed | km/h | 90 |
| Engine | WD615.62 |
| Fuel type | Diesel |
| Emission | EURO II |
| Transimssion | HW13710 10 forwards and 2 reverse |
| Front axle | HF7 |
| Rear axle | HW1279 |
| Steering system | ZF8098 |
| Color | Optional |
| Tyre | 295/80R22.5 |
| Tyre quantity | 10pcs +1 spare |
| Electrical system | Battery | 2X12V/165Ah |
| Alternator | 28V-1500kw |
| Starter | 7.5Kw/24V |
| Cab | HW76 with air conditioner and sleeper,
all-steel forward control, 55° Hydraulically tiltable to the front,
2 arm windscreen wiper system with speeds,
laminated windscreen with casted in radio aerial,
hydraulically damped adjustable drivers seat and
rigid adfustable codrivers seat, with heating and
ventilating system,
exterior sun visor, adjustable roof flap,
stereoradio/CAS stte recorder, safety belts,
djustable steering wheel,
air horn, air conditioner, with 4 pointsupport
fully floating suspension and shock absorbers |
| performance | suction≥6m watering width≥14m shot≥28m |
| Front spray and back watering, with side spray,
back working table, on working table
there is watering high pressure cannon
(cannon spray shape can be adjustable,
straight spray,
heavy rain, mid rain, small rain, max shoot
28m, with watering pump, fire fighting connect head,
valve, fitter andself-absorption function |
| accessories | One set tools, and spare parts |
Description:
Its safety, economical efficiency, and comfort performance have
reached the best level in China. The
water pump comes from the domestic famous brand, featuring great
pressure, long range, and high
reliability. The steel plate of tank body absorbs the double-side
sand blasting technology, which can get
rid of the oxide coating, rust, the stress of steel materials, and
some others. Additionally, the adhesive
force of paint film is enhanced. Then, exceptional quality of both
vehicle welding and paint spraying can
be achieved.
Applications:

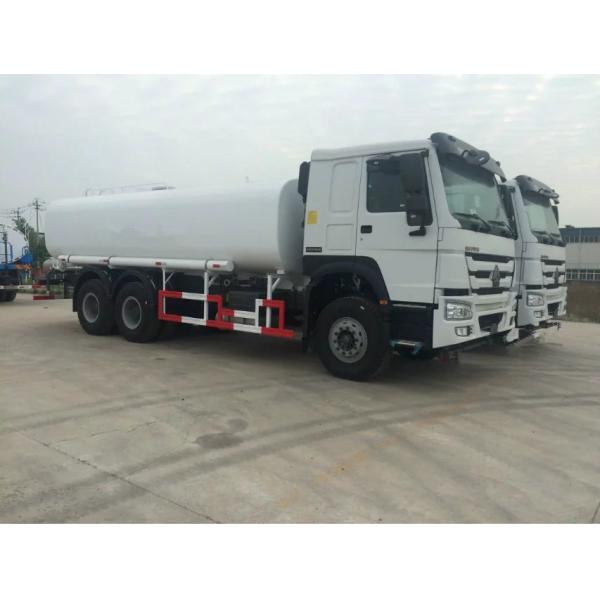

It is suitable for in water transportation.Sinotruk Water Tank
Trucks/ City Clean Truck/Sprinking Truck 20 m3 Water Tank Trucks in
High quality and Best price
Competitive Advantage:
1. For better realizing spraying functions, this Sprayer Water
Truck can be selectively equipped with the
engine-driven spraying system, independent petrol engine spraying
system, and some others.
2. The cab roof is provided with long row type round warning
lights, as well as alarming apparatus. The
back of tank body has the arrow indicator, which makes the caution
more attractive.
3. Both sides of the tank body are installed with three-part spray
guns, which provide such functions as side impact, cleaning, and
some others.
4. The snow shovel is available as choice for temporary snow
removal in winter.
5. The high or low level alarm system is able to prevent excessive
water from spilling, and also protect
the water pump system.
Package&Shipping:
Company Introduction:
SINO HEAVY MACHINERY CO.,LTD. Is a professional supplier of various SINOTRUK brand trucks with
more than 30 years manufacturing and exporting experience.
We mainly focus on various trucks' R&D,Producing and sales
kinds of trucks with different function,such as heavy duty/medium
duty/light duty truck,mining tipper,tractor truck,various
construction project equipment etc...
Our all products with world-known brands spare parts,such as ZF
steering and oil pump;WABCO braking system;VOSS braking connectors
made in Germany;MANN+HUMMEL fuel filer system and air filter;VOD
instrument and electric control block;German BEHR cooling system
etc...Those high quality parts supplying ensure our products the
first-class quality level and excellent driving performance.
Till now we have exported more than 30 countries and areas
including Asia,Southeast Asia,Africa,South Africa etc..
We are committed to help more countries customer's engineering
construction, make the world more harmonious and beautiful!
Quality Inspection:
Service:
Pre-service:
- Inquiry and Consulting support.
- Sample testing support.
- View our factory.
- Design various solutions as buyer's requirement.
After-sale service:
- Training how to use and maintain the truck.
- Our engineers supply the support of technology.
- 12 months warranty for 3 key spare parts(Engine,Transmission,Axle)
- Parts supply on time.
- 24 hours service and technology support.
Customers' use and feedback
www.road-machine.com
www.china-sinotruck.com
Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons
mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted
crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer,
tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting
crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
