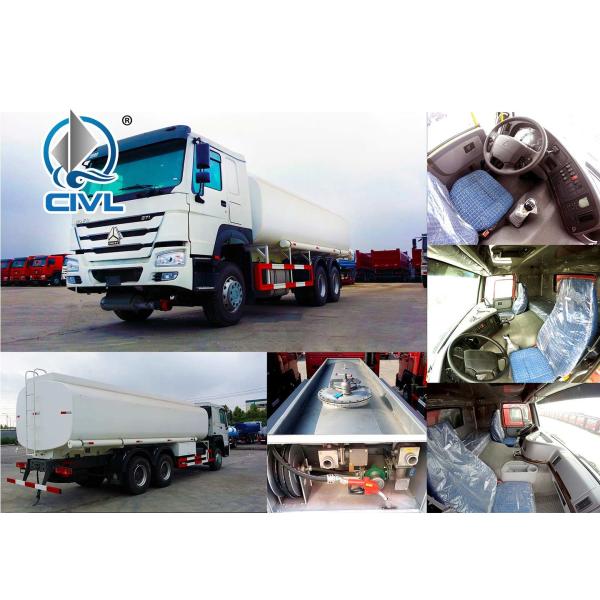

Fuel Tanker Truck SINOTRUK HOWO 16-25CBM 6X4 LHD Euro2 336HP
Description:
Fuel Tanker Truck SINOTRUK HOWO 16-25CBM 6X4 LHD Euro2 336HP
The fuel tank truck mainly for oil derivatives (gasoline, diesel
oil, lubricating oil and coal tar oil) transportation and storage.
According to a variety of gas or oil, and the use of different
environment with the oil, pump oil, a variety of oil equipment, put

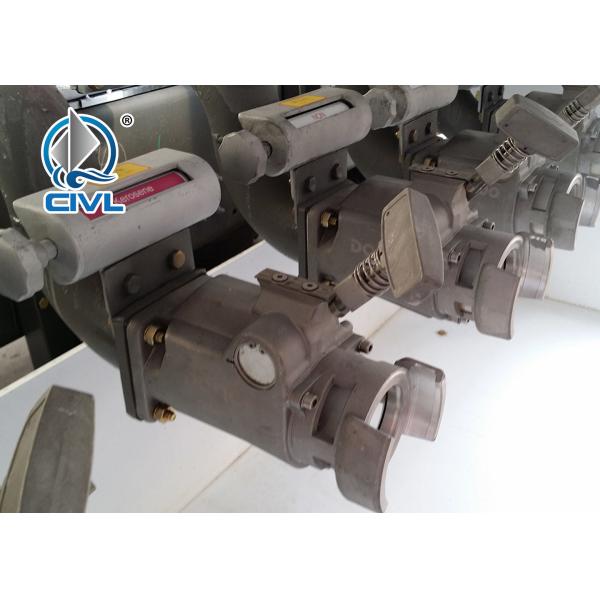

the function. Tanker special part is composed of a tank, PTO, drive
shaft, gear pump, pipeline system components. Pipes system is
composed of an oil pump, three through four ball valve, two-way
valve. Filter pipe.
Our Oil Tank Truck adopts advanced butt welding technology, the
high pressure gas after the forming of the tank test leak
detection, the tank has high
strength, stable center of gravity, vehicle safety and stable; tank
welding after shot
blasting pretreatment process, rust, paint adopts advanced baking
technology, durable and
beautiful appearance.
Specification:
| Fuel Tanker Truck SINOTRUK HOWO 16-25CBM 6X4 LHD Euro2 336HP |
| Chassis Model | CVZZ2257N4657D1 |
| Drive Type | 6×4 |
| Engine | WD615.69, 336HP |
| Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and two
new-style seat) |
| Transmission | HW19710(10 forwards & 2 reverses) |
| Front Axle | HF9(1X9 Tons) |
| Driving Axle | HC16(1X16 Tons) |
| Clutch | hydraulically operating with air assistance |
| Rim/ Tire | 12.00R20, Radial tyre |
| Wheel base | 4600+1350(mm) |
| Capacity of tank body | 16-25CBM |
| Thickness of tank body | 5mm,With 5 cabin |
| Basic setup | Gear oil pump, flow meter, flash hider, fire extinguisher |
| Overall dimension | 9200×2500×3150mm |
| The curb weight | 11940(Kg) |
| Gross weight | 25000 kg |
| Max. speed | 95km/h |
| Color | White, red, green, golden and so on. |
Applications:
The Oil tank truck is mainly used for oil derivatives (gasoline,
diesel oil, lubricating oil and coal tar oil)
transportation and storage.
Competitive Advantage:
1) competitive price, cost-effective
2) quick delivery time
3) Our Oil tank truck with advanced butt welding technology, after
the forming
of the tank high pressure gas leak detection, the tank has a high
intensity, stable center of gravity,
safe and stable vehicle characteristics;
4) Shot blasting pre treatment process after welding tank, rust,
paint adopts the advanced baking technology, durable and beautiful
appearance. Independent sub positions,
5) Divided into different oil products, chemicals, food, as liquid
food truck, chemical liquid truck,
insulation liquid vehicles, dangerous goods transport vehicles, the
asphalt transportation vehicle
6) External sandblasting processing of tank, internal
anti-corrosion treatment, Outside surface adopts advanced
polyurethane paint, beautiful appearance
7) Front and back high spray is optional, water jet diffusion
function, 360 degrees of rotation,
150 degree tilt up and down. Options small flow pump, spraying reel
to wake insecticidal garden trees
flowers and plants
8) with all kinds of truck model, which can fulfill your
requirement
9) the key parts adopt the world's top technology products
10) based on strong technical support and top level technology make
the trucks with high quality and
more reliable
11) professional export and import procedure dealing
12) Using SINOTRUK HOWO 6X6 all wheels driving truck chassis,
13) Strong more power
14) Good off-road performance
