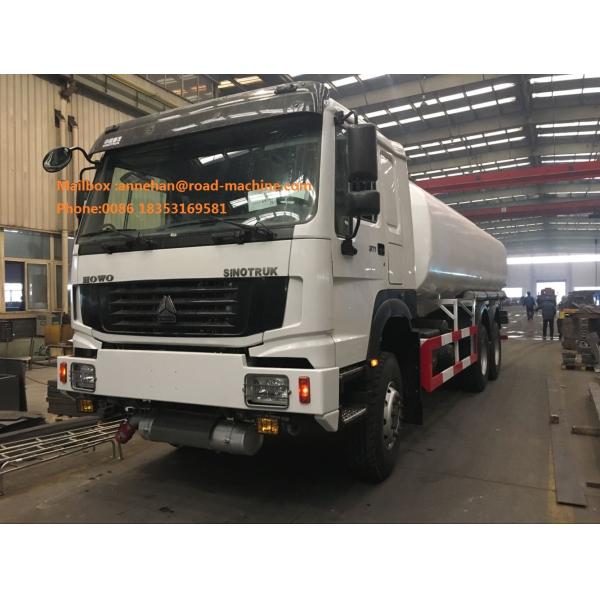

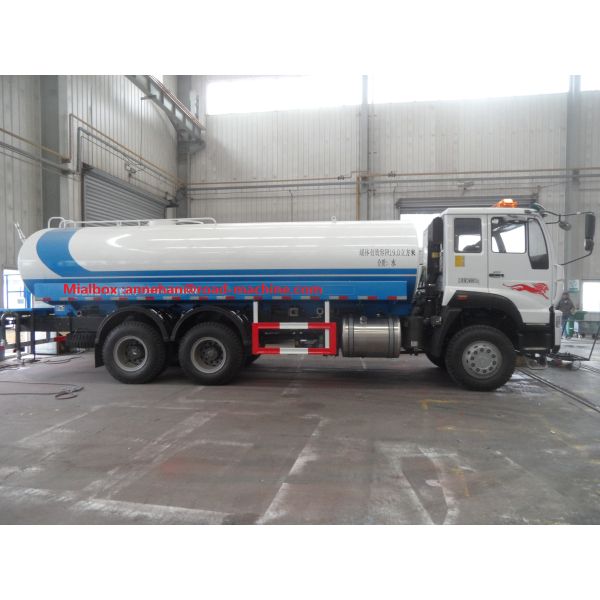

SINOTRUK HOWO Green Water Carrying Water Tank Truck Drinking Water
Truck 15-25CBM
Description:
SINOTRUK HOWO Green Water Carrying Water Tank Truck Drinking Water
Truck 15-25CBM
SINOTRUK HOWO Water tank truck is widely used in city landscaping,
road or ming site dusty restrain and so on.
Self suction height: less than or equal to 7m, sprinkler width: is
equal to or more than 20m, maximum range: greater than or equal to
28m; adjusting the pillars, the range is more than or equal to 28m;
Also can be adjusted into a mist, a range of equal to or more than
5m. Before the spray sprinkle, is arranged
in front of the duck shaped nozzle or round blunt mouth, mounted
behind the open sprinkler nozzle or shower nozzle of cylinder, at
the back of the work platform, equipped with water cannons.
Working principle is truck engine driven gearbox, gearbox mounted
power take-off drive
sprinkler pumps, sprinkler pump produces the main driving force,
inside the tank of
liquid through the pipe to spray out.
Specification:
| SINOTRUK Water tank truck with Internal Anti - Corrosion 18-25CBM
for water carrying |
| Chassis Model | ZZ1257N4641W |
| Drive Type | 6×4 |
| Engine | WD615.69, 336HP |
| Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and two
new-style seat) |
| Transmission | HW15710(10 forwards & 2 reverses) |
| Front Axle | HF9(1X9 Tons) |
| Driving Axle | HC16(1X16 Tons) |
| Clutch | hydraulically operating with air assistance |
| Rim/ Tire | 11.00R20, Radial tyre |
| Wheel base | 4325+1350(mm) |
| Capacity of tank body | 21-25CBM |
| Spraying width of travel | 14.8m |
| Spraying height | ≧30m |
| Water sucking depth | ≧4m |
| Overall dimension | 9920×2496×3550mm |
| The curb weight | 13180(Kg) |
| Gross weight | 25000 kg |
| Max. speed | 95km/h |
| Color | White, red, green, golden and so on. |
Applications:
The Water tank truck is mainly used for construction of mines and
other enterprises, road flushing and
dust covering in large-medium-scale cities.
Competitive Advantage:
1) with all kinds of truck model, which can fulfill your
requirement
2) the key parts adopt the world's top technology products
3) based on strong technical support and top level technology make
the trucks with high quality and
more reliable
5) High pressure, wide range of spraying good flushing effect
6) Blunt head universal adjustment, meet the arbitrary Angle and
the combination of the flush operation
7) Pneumatic control and manual control system can realize two
functions
8) External sandblasting processing of tank, internal
anti-corrosion treatment, Outside surface adopts advanced
polyurethane paint, beautiful appearance
9) Front and back high spray is optional, water jet diffusion
function, 360 degrees of rotation,
150 degree tilt up and down. Options small flow pump, spraying reel
to wake insecticidal garden trees
flowers and plants
10) competitive price, cost-effective
11) quick and efficient spare parts supply bring you more
convenient
12) fast delivery time, we can arrange production according to your
needs exactly and quickly
13) professional import and export dealing procedure, make customs
clearance more high efficiency
