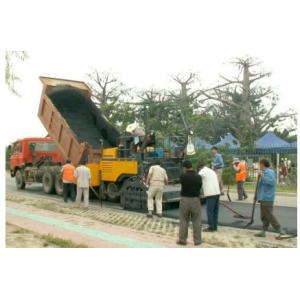

XCMG brand Asphalt Concrete Paver Machine, model RP452,
productivity 240t/h, paving width 4.5m, thickness 150mm
Features:
· The first full-hydraulic compact tire paver and hydraulic
components in China are all well-known domestic and foreign
company's products to ensure product reliability.
· The left and right input materials are independent, single-sided
chain with a unique single-chain double scraper form, effectively
improve the whole material conveying capacity.
The use of mechanical and electrical integration control
technology, the standard configuration of two longitudinal
electronic automatic leveling instrument to ensure paving a higher
degree of smoothness.
* Screed hydraulic stepless telescopic, suitable for widening road
operating conditions; stepless adjustable vibration frequency, to
meet the needs of different operating conditions.
Power transmission system uses Yuchai YC4D95Z engine, power up to
70KW, large power reserve.
Specification:
| ITEM | UNIT | SPECIFICATION |
| Working performance data | | |
| Productivity | t/h | 240 |
| Max.paving width | m | 4.5 |
| Max.Paving thickness | mm | 150 |
| Max.paving speed | m/min | 13 |
| Flatness | mm | 3 |
| Density | % | ≥80 |
| Density unevenness rate | % | ＜5 |
| Driving data | | |
| Max.driving speed | km/h | 13 |
| Drive mode | | Tyre type |
| Gradeability | % | 20 |
| Min.turning diameter | m | 16 |
| Driving bake | | Static+multi disc brake |
| Parking brake | | Wet multi disc brake |
| Brake distance | m | 4.7 |
| Tyre model | | 974 |
| Vibration frequency | Hz | 6～42 |
| Weight data | | |
| Machine weight | kg | 11500 |
| Max.weight | kg | 12000 |
| Oversize | mm | 5690×2070×3590 |
| Bucket volume | t | 12 |
| Bucket width | mm | 3000 |
| Bucket length | mm | 1740 |
| Engine | | |
| Model | | YC4D95Z-T21 |
| Power | kW/r/min | 70/2200 |
| Emission | | Euro II |
| Fuel tank | L | 130 |
