Large Mechanical Equipment Shantui Dozer 220hp 320hp With Cummins Engine

Shantui Dozer 220hp 320hp Official manufacture new

Product Description

SD22C coal bulldozer is researched and developed in response to the demands of special engineering environments and is suitable for the operations of bulk materials in power plants and ports.

Engine power/speed: 162kw/1800rpm
Operating weight of whole machine: 24000Kg(excluding ripper)

Technical Features

1.It’s an essential large mechanical equipment for the bulk material operation sites, including power plants and large ports.

2.The standard coal blade features super-large capacity and super-high productivity and durability to handle the high strength workload in power plants and ports and the outstanding durability of the blade is guaranteed by the application of the high strength box-type structure and high performance material.

Performance Parameters

ITEM	UNIT	SD22C
L×W×H (Ripper not included)	mm	5750×4200×3395
Operating weight (Ripper not included)	t	24.6
Engine	-	Cummins NT855-C280S10
Rated power	kW/rpm	162/1800
Gradeability	°	30
Blade type	-	Coal blade
Blade width	mm	4200×1350
Dozing capacity	m 3	9
Ma× drop below ground of blade	mm	540
Lift height of blade	mm	1210
Ripper type	-	Single ripper Three-shank ripper
Ripping depth of ripper	mm	Single ripper 695 Three-shank ripper 666
Lifting height of ripper	mm	Single ripper515 Three-shank ripper 555
Number of carriers (each side)	-	2
Number of track rollers (each side)	-	6
Number of track shoes (each side)	-	38
Width of track shoe	mm	660
Track gauge	mm	2000
Ground length and ground pressure	mm/MPa	2730-0.066
Pitch	mm	216
Forward speed	km/h	0-3.6
		0-6.5
		0-11.2
Reverse speed	km/h	0-4.3
		0-7.7
		0-13.2

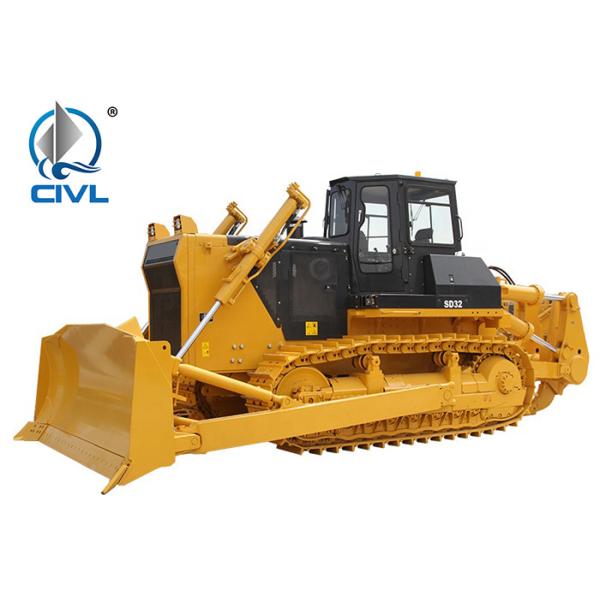

320HP Heavy Construction Machine SHANTUI SD32 dozer for sale

Specification:

ITEM	UNIT	SD32
L×W×H (Ripper not included)	mm	6880×4130×3725
Operating weight (Ripper not included)	t	37.2
Engine	-	NTA855-C360S10
Rated power	kW/rpm	235/2000
Gradeability	°	30
Blade type	-	Straight tilt bladeSemi-U bladeAngle blade
Blade width	mm	Straight tilt blade 4130×1590Semi-U blade 4030×1720Angle blade 5000×1140
Dozing capacity	m3	Straight tilt blade 10Semi-U blade 11.9Angle blade 6
Ma× drop below ground of blade	mm	560
Lift height of blade	mm	1560
Ripper type	-	Single ripperThree-shank ripper
Ripping depth of ripper	mm	Single ripper 1250Three-shank ripper 842
Lifting height of ripper	mm	Single ripper 955Three-shank ripper 883
Number of carriers (each side)	-	2
Number of track rollers (each side)	-	7
Number of track shoes (each side)	-	41
Width of track shoe	mm	560
Track gauge	mm	2140
Ground length and ground pressure	mm/MPa	3150-0.105
Pitch	mm	228.6
Forward speed	km/h	0–3.6
		0–6.6
		0–11.5
Reverse speed	km/h	0–4.4
		0–7.8
		0–13.5
